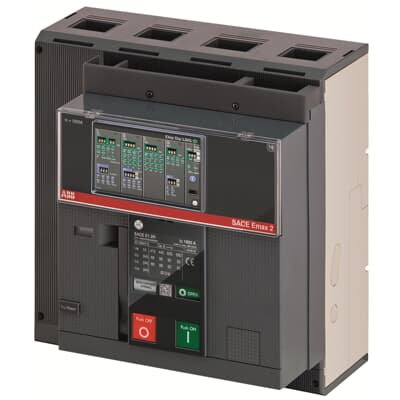

E1.2N 1250 Ekip Dip LI 4p F F
Extended Product Type: E1.2N 1250 Ekip Dip LI 4p F F
Product ID: 1SDA071471R1
EAN: 8015644753214
Description: C.BREAKER SACE EMAX2 E1.2N 1250 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP/DIP-LI R 1250 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
ABB EcoSolutions: Yes
Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
Extended Product Lifetime: Lifetime Extension Services are Offered
Recyclability Rate according to EN45555: 76.4 %
RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Customs Tariff Code: 85362090
Dimensions (cm): Width: 28, Height: 29.6, Depth: 18.3
Weight: 16 kg
Package Level 1 Dimensions (cm): Width: 35, Height: 35, Depth: 33
Package Level 1 Gross Weight: 18 kg
Main Type: SACE Emax 2
Product Name: Air Circuit Breaker
Version: F
Connection Capacity: 1000 mm²
Current Type: AC
Electrical Durability: Ue =< 440 V 8000 cycles; Ue = 500 to 690 V 6500 cycles; 30 cycles per hour
Mechanical Durability: 20000 cycles; 60 cycles per hour
Neutral Pole Current: 100 %
Number of Poles: 4
Power Loss: 122 W
Rated Current: 1250 A
Rated Impulse Withstand Voltage: According to IEC 60947-2 12 kV
Rated Insulation Voltage: AC 1000 V
Rated Operational Voltage: 690 V AC
Rated Service Short-Circuit Breaking Capacity Ics: 50 kA at 220 V AC to 690 V AC
Short-time Withstand Current Icw: for 1 s 50 kA; for 3 s 30 kA
Rated Ultimate Short-Circuit Breaking Capacity Icu: 66 kA at 400 to 440 V AC; 50 kA at 500 to 690 V AC
Rated Uninterrupted Current Iu: 1250 A
Recommended Screw Driver: M12
Release: Ekip Dip LI
Release Type: EL
Short-Circuit Performance Level: N
Standards: IEC
Sub-type: E1.2
Suitable for IT Networks: Yes, 690 V
Terminal Connection Type: Front
Terminal Type: Bolt
Tightening Torque: 45 N·m
