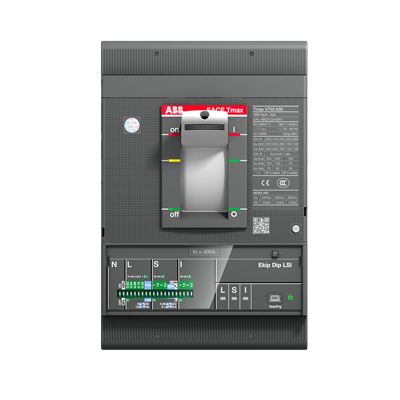

XT5S 400 Ekip Dip LS/I In=400 3p F F
Description: C.BREAKER TMAX XT5S 400 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP DIP LS/I R 400
Product ID: 1SDA100424R1
EAN: 8056221005012
Catalog Description: XT5S 400 Ekip Dip LS/I In=400 3p F F
Dimensions (cm): Width 14 x Height 20.5 x Depth 10.35
Net Weight: 4.82 kg
Package Dimensions (cm): Width 25 x Height 24.5 x Depth 28.5
Gross Weight Package Level 1: 5.308 kg
Circuit Breaker Type: Power Distribution
Main Type: SACE Tmax XT
Product Name: Moulded Case Circuit Breaker
Product Type: Automatic Circuit Breaker
Version: F
Current Type: AC
Rated Current: 400 A
Rated Operational Voltage: 690 V AC
Rated Insulation Voltage (Ui): 1000 V
Rated Impulse Withstand Voltage (Uimp): 8 kV
Number of Poles: 3
Electrical Durability: 7000 cycles at 60 cycles/hour
Mechanical Durability: 20000 cycles at 120 cycles/hour
Power Loss: 19 W
Release: Ekip Dip LS/I
Release Type: EL
Short-Circuit Performance Level: S
Standards: IEC60947-2
Rated Service Short-Circuit Breaking Capacity (Ics) in kA at different voltages AC: 220V:85, 230V:85, 240V:85, 380V:50, 415V:50, 440V:50, 500V:30, 525V:30, 690V:25
Rated Ultimate Short-Circuit Breaking Capacity (Icu) in kA at different voltages AC: 220V:85, 230V:85, 240V:85, 380V:50, 415V:50, 440V:50, 500V:30, 525V:30, 690V:25
Rated Short-time Withstand Current Low Voltage (Icw): 5 kA
Rated Uninterrupted Current (Iu): 400 A
Terminal Connection Type: Front
Order Code US and Canada: XT5SE340AEFF000XXX
Minimum Order Quantity: 1 piece
Customs Tariff Code: 85362090
