Product Overview

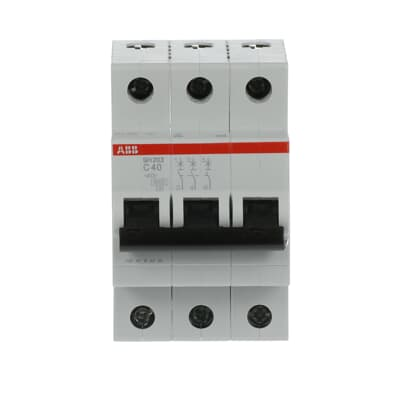

Model: SH203-C40
Description: Miniature Circuit Breaker – SH200 – 3P – 40 A – C – (AC) 6 kA
Compact Home SH200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. Available in different characteristics (B, C), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 40 A). Complies with IEC/EN 60898-1, suitable for residential applications.
Technical Specifications
Dielectric Test Voltage: 50 / 60 Hz – 1 min 2 kV
Power Supply Connection: Arbitrary
Contact Position Indication: ON / OFF
Energy Limiting Class: 3
Electrical Endurance: 10000 AC cycles
Mechanical Endurance: 20000 cycles
Number of Protected Poles: 3
Number of Poles: 3
Tightening Torque: 2 N·m
Actuator Type: Toggle
Screw Terminal Type: Cage Terminal
Actuator Marking: I / O
Actuator Material: Insulation Group II, Black, Sealable
Recommended Screw Driver: Pozidriv 2
Accessories Available: No
Connecting Capacity: Flexible with Ferrule 0.75 to 16 mm², Flexible 0.75 to 16 mm², Rigid 0.75 to 25 mm², Stranded 0.75 to 25 mm², Conductor 25 / 25 mm²
Installation Size: according to DIN 43880 1
Terminal Type: Screw Terminals
Tripping Characteristic: C
Rated Operational Voltage: according to IEC 60898-1 400 V
Operational Voltage Range: Minimum 12 V AC to Maximum 440 V AC
Rated Insulation Voltage (Ui): according to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp): 4 kV at Sea Level 6.2 kV, 5 kV at 2000 m
Input Voltage Type: AC
Rated Current (In): 40 A
Rated Short-Circuit Capacity: 6 kA (400 V AC)
Rated Conditional Short-Circuit Current (Inc): 6 kA
Rated Frequency (f): 50 / 60 Hz
Power Loss: 14.4 W total, 4.8 W at Rated Operating Conditions per Pole
Overvoltage Category: III
Design and Environmental
Housing Material: Insulation Group II, RAL 7035
RoHS Compliance: Following EU Directive 2011/65/EU and Amendment 2015/863 as of July 22, 2019
REACH Compliance: Does not contain substances over 0.1 mass percentage
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE Market: Business To Business
Ambient Air Temperature Operating Range: -25 to +55 °C
Ambient Air Temperature Storage Range: -40 to +70 °C
Reference Ambient Air Temperature: 30 °C
Degree of Protection: IP20, Enclosure with Cover IP40
Pollution Degree: 2
Environmental Conditions: 28 cycles with 55 °C / 90-96% humidity and 25 °C / 95-100% humidity
Resistance to Vibrations: 20 Cycles with Load 0.8 In: 5g 5 to 150 to 5 Hz
Resistance to Shock: 25g, 2 shocks, 13 ms according to IEC 60068-2-27
Dimensions and Weight
Width: 5.25 cm (3.0 modular spacings)
Height: 8.5 cm
Depth / Length: 6.9 cm
Built-In Depth (t2): 6.9 cm
Net Weight: 0.33 kg
Pole Net Weight: 0.125 kg
Ordering and Certification
Package Level 1 Units: carton, 1 piece
Package Level 1 Gross Weight: 0.35 kg
E-Number (Finland): 3210965
Replaced Product IDs: 9PAA00000018391, 9PAA00000018393, 9PAA00000018397
Standards: IEC/EN 60898-1
Certification Agency: EN, IEC
Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) and TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position: any
Customs Tariff Code: 85362010
