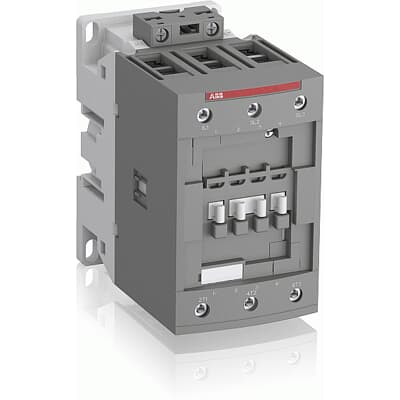

AF96-30-00-14 Block Contactor
The AF96-30-00-14 is a 3 pole – 1000 V IEC or 600 UL contactor with screw terminals, controlling motors up to 45 kW / 400 V AC (AC-3) or 60 hp / 480 V UL and switching power circuits up to 130 A (AC-1) or 115 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks.
Surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Customs Tariff Code: 85364900
Technical Specifications:
Number of poles: 3P
Main contacts NO: 3, NC: 0
Auxiliary contacts NO: 0, NC: 0
Rated operational voltage main circuit: 1000 V
Rated frequency control circuit: 50 / 60 Hz
Conventional free-air thermal current (Ith): 130 A
Rated operational current AC-1 (690 V, 40 °C): 130 A
Rated operational current AC-3 (415 V, 60 °C): 96 A
Rated operational power AC-3 (415 V): 55 kW
Rated insulation voltage (Ui) IEC: 1000 V
Rated impulse withstand voltage (Uimp): 8 kV
Mounting: DIN rail TH35-15 (35 x 15 mm) or by screws 2 x M4 or 2 x M6 placed diagonally
Terminal type: Screw Terminals
Product dimensions (W x D x H): 7 cm x 11.6 cm x 12.55 cm
Weight: 1.17 kg
Degree of protection: Coil terminals IP20, Main terminals IP10
Tightening torque: Control circuit 1.2 N·m, Main circuit 6 N·m
Ambient operating temperature: -40 to 70 °C (with or without thermal overload relay), Storage temperature: -60 to +80 °C
Maximum operating altitude: 3000 m without derating
Product brand and manufacturer: ABB
