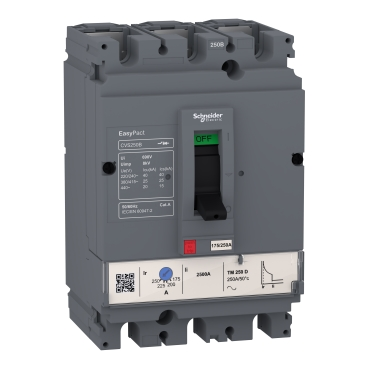

EasyPact CVS Circuit Breaker LV510775
This device is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is optimal for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 25 kA rms at 415 VAC 50/60 Hz. It complies with IEC 60947, EN 60947, CCC, CB standards.
Key Specifications:
Range: EasyPact
Range of product: EasyPact CVS100…250
Device short name: CVS100B
Product type: Circuit breaker
Device application: Distribution
Poles description: 3P
Protected poles description: 3D
Earth leakage protection: Without
Rated current In: 63 A at 50 °C
Network type: AC
Utilisation category: Category A
Breaking capacity Icu: 40 kA at 220/240 V AC, 25 kA at 380/415 V AC
Trip unit name: TM-D
Trip unit technology: Thermal-magnetic
Trip unit rating: 63 A at 50 °C
Protection type: Overload protection (thermal), Short-circuit protection (magnetic)
Main Characteristics:
Rated impulse withstand voltage Uimp: 8 kV
Frequency: 50/60 Hz
Breaking capacity code: B
Rated service breaking capacity Ics: 15 kA at 440 V AC, 25 kA at 380/415 V AC, 40 kA at 220/240 V AC
Mechanical durability: 30000 cycles
Electrical durability: 12000 cycles at 415 V In
Control type: Toggle
Long time pick-up adjustment type Ir: Adjustable
Long time pick-up adjustment range: 0.7 to 1 x In
Long time delay adjustment type: Fixed
Short-time delay adjustment type: Fixed
Instantaneous pick-up adjustment type Ii: Fixed
Instantaneous pick-up adjustment range: 500 A
Contact position indicator: Yes
Mounting support: Backplate
Mounting mode: Fixed
Upside and downside connection: Front
Connection pitch: 3.5 cm
Compatibility code: CVS100
Width: 10.5 cm
Depth: 8.6 cm
Height: 16.1 cm
Net weight: 1.5 kg
Complementary Info:
Standards: IEC 60947-2, EN 60947-2
Product certifications: GOST, IEC
Electrical shock protection class: Class II
Ambient air temperature for operation: -25 to 70 °C
Ambient air temperature for storage: -50 to 85 °C
Packaging:
Unit type of package 1: PCE
Number of units in package 1: 1
Package 1 weight: 1.773 kg
Warranty:
18 months
Customs Tariff Code: 853620
