Product Overview

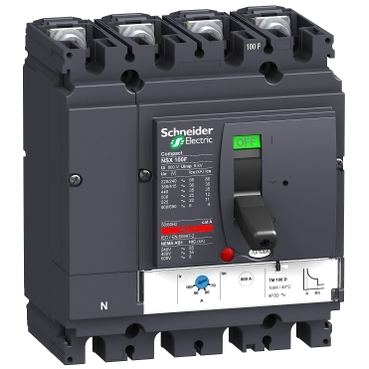

This Compact NSX100F is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36 kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 100 rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (14.0 cm x 16.1 cm x 8.6 cm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX100F is part of Schneider Electric EcoStruxure Power architecture.
Specifications
Range: ComPact; Product name: ComPact NSX; Range of product: ComPact NSX100…250; Device short name: NSX100F; Type: Circuit breaker; Application: Distribution; Number of poles: 4; Protected poles description: 4t; Neutral position: Left; Rated current: 100 A at 40 °C; Rated operational voltage: 690 V AC 50/60 Hz; Network type: AC; Network frequency: 50/60 Hz; Suitability for isolation: Yes conforming to EN/IEC 60947-2; Utilisation category: Category A; Rated ultimate short-circuit breaking capacity: 10 kA at 600 V AC 50/60 Hz UL 508; 25 kA at 480 V AC 50/60 Hz UL 508; 85 kA at 240 V AC 50/60 Hz UL 508; 22 kA Icu at 525 V AC 50/60 Hz IEC 60947-2; 25 kA Icu at 500 V AC 50/60 Hz IEC 60947-2; 35 kA Icu at 440 V AC 50/60 Hz IEC 60947-2; 36 kA Icu at 380/415 V AC 50/60 Hz IEC 60947-2; 8 kA Icu at 660/690 V AC 50/60 Hz IEC 60947-2; 85 kA Icu at 220/240 V AC 50/60 Hz IEC 60947-2; Performance level: F 36 kA 415 V AC; Trip unit name: TM-D; Trip unit technology: Thermal-magnetic; Protection functions: LI; Control type: Toggle; Mounting mode: Fixed.
Rated insulation voltage: 800 V AC 50/60 Hz; Rated impulse withstand voltage: 8 kV; Rated service short-circuit breaking capacity: 11 kA at 525 V AC 50/60 Hz IEC 60947-2; 35 kA at 440 V AC 50/60 Hz IEC 60947-2; 36 kA at 380/415 V AC 50/60 Hz IEC 60947-2; 4 kA at 660/690 V AC 50/60 Hz IEC 60947-2; 85 kA at 220/240 V AC 50/60 Hz IEC 60947-2; 12.5 kA at 500 V AC 50/60 Hz IEC 60947-2; Mechanical durability: 50000 cycles; Electrical durability: 10000 cycles at 690 V In; 20000 cycles at 690 V In/2; 30000 cycles at 440 V In; 50000 cycles at 440 V In/2; Mounting support: Backplate; Connections: Front upside and downside; Connection pitch: 3.5 cm; Protection type: L for overload protection (thermal), I for short-circuit protection (magnetic); Trip unit rating: 100 A at 40 °C; Long-time pick-up adjustment type Ir: Adjustable; Long-time protection pick-up adjustment range: 0.7 to 1 x In; Long-time protection delay adjustment type tr: Fixed; Long-time protection delay adjustment range: 120 to 400 s at 1.5 x In, 15 s at 6 x Ir; Short-time protection pick-up adjustment type Isd: Fixed; Short-time protection pick-up adjustment range: 800 A; Short-time protection delay adjustment type tsd: Fixed; Earth-leakage protection: Without; Neutral protection settings: 1 x Ir (4t); Number of slots for electrical auxiliaries: 5.
Dimensions (W x H x D): 14.0 cm x 16.1 cm x 8.6 cm; Net weight: 2.4 kg.
Standards: EN/IEC 60947; Certifications: CCC, EAC, Marine; Overvoltage category: Class II; Electrical shock protection class: Class II; Pollution degree: 3 conforming to IEC 60664-1; IP degree of protection: IP40 conforming to IEC 60529; IK degree of protection: IK07 conforming to IEC 62262; Ambient air temperature for operation: -25 to 70 °C; Ambient air temperature for storage: -50 to 85 °C; Relative humidity: 0 to 95 %; Operating altitude: 0 to 2000 m without derating, 2000 m to 5000 m with derating.
Package 1 Dimensions (H x W x L): 14.4 cm x 14.9 cm x 19.3 cm; Package 1 Weight: 2.314 kg; Package 2 Dimensions (H x W x L): 30.0 cm x 40.0 cm x 60.0 cm; Package 2 Weight: 21.592 kg; Warranty: 18 months.
Customs Tariff Code: 85362000.
