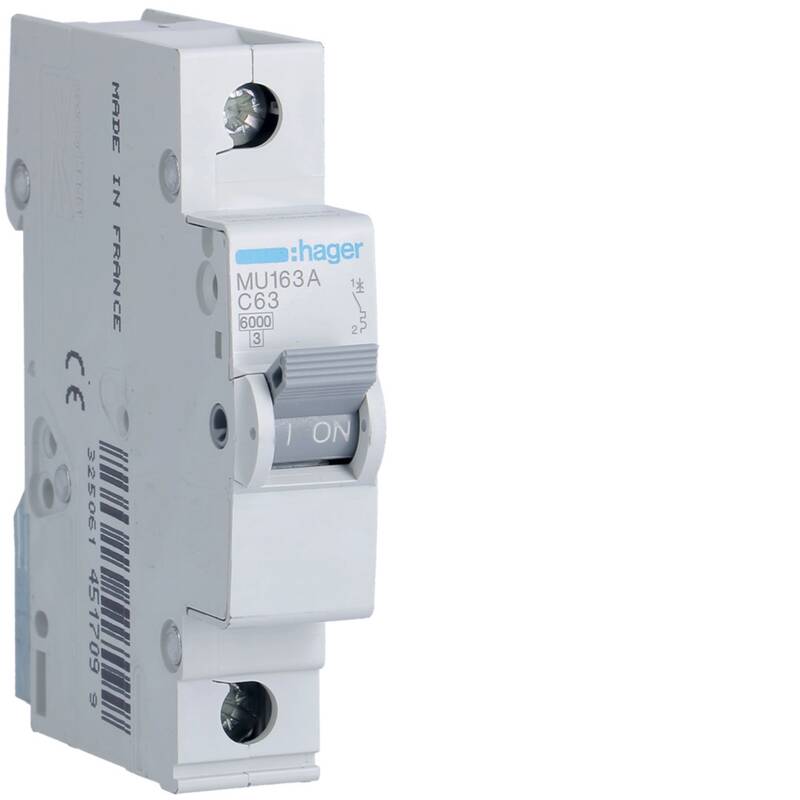

MCB 1P 6kA C-63A 1M MU163A

Elec­tric current

Rated current: 63 A

Rated service breaking capa­city Ics under 230 V AC according to IEC 60947-2: 6 kA

Rated short-­cir­cuit breaking capa­city Icn under 230 V AC according to IEC 60898-1: 6 kA

Rated current -15°C: 78.1 A

Rated current -10°C: 76.5 A

Rated current -5°C: 75.1 A

Rated current at 0°C: 73.5 A

Rated current 5°C: 72 A

Rated current 10°C: 70.5 A

Rated current 15°C: 69 A

Rated current at 20°C: 67.5 A

Rated current 25°C: 66 A

Rated current 30°C: 63 A

Rated current 35°C: 62 A

Rated current at 40°C: 60.5 A

Rated current at 45°C: 58.7 A

Rated current at 50°C: 58.3 A

Rated current 55°C: 52.8 A

Rated current 60°C: 50.5 A

Rated current 65°C: 48.1 A

Rated current 70°C: 45.6 A

Archi­tec­ture

Type of pole: 1P

Curve: C

Capa­city

Number of modules: 1

Main elec­trical attrib­utes

Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1: 6 kA

Install­a­tion, mounting

Nominal tight­ening torque top terminal: 2.80 – 2.80 Nm

Nominal tight­ening torque down terminal: 2.80 – 2.80 Nm

Nominal tight­ening torque: 2.80 – 2.80 Nm

Type of bottom connec­tion for modular devices: bicon­nect

Type of top connec­tion for modular devices: Screw terminal

360° mounting posi­tion possible: Yes

Voltage

Rated oper­a­tional voltage Ue: 230-400 V

Type voltage supply: AC

Rated insu­la­tion voltage Ui: 500 V

Rated impulse with­stand voltage Uimp: 4,000 V

Frequency

Frequency: 50 – 60 Hz

Connec­tion

Cross-sec­tion of input and output with screws, for massive conductors: 1 – 35 mm²

Cross-sec­tion of input and output with screws, for flex­ible conductors: 1 – 25 mm²

Cross-sec­tion of input with screws, for flex­ible conductors: 1 – 25 mm²

Cross-sec­tion of input with screws, for massive conductors: 1 – 35 mm²

Safety

Ingress Protec­tion (IP) class: IP20

Use condi­tions

Degree of pollu­tion according to IEC 60664 / IEC 60947-2: 2

Class of energy limit­a­tion I²t: 3

Oper­ating temper­ature: -25 – 70 °C

Power

Total power loss under IN: 5.73 W

Connectivity

Type of connec­tion: Screw terminal

Top connec­tion align­ment for modular devices: Aligned terminal

Down connec­tion align­ment for modular devices: Aligned terminal

Dimen­sions

Height: 83 mm

Width: 17.5 mm

Depth: 70 mm
