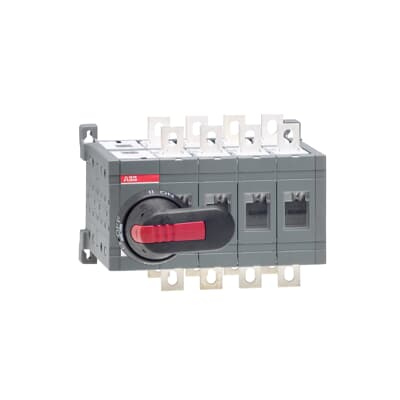

OT160E04CP – Change-over Switch
Extended Product Type: OT160E04CP
Product ID: 1SCA022775R9440
EAN: 6417019252551
Description: 160A, 4 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle, shaft and bolt set for cable connection. Handle padlockable in the 0-position, door interlock in I- and II- positions and when padlocked.
Degree of Protection: Front IP20
Pollution Degree: 3
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85365080
Country or Territory of Origin: Finland
Dimensions: Width: 20.5 cm, Height: 15.0 cm, Depth/Length: 16.0 cm
Net Weight: 3.3 kg
Package Dimensions: Width: 16.0 cm, Depth/Length: 27.0 cm, Height: 18.5 cm
Gross Weight: 4.05 kg
Electrical Ratings: Conventional free-air thermal current Ith: 160 A at Θ = 40 °C; Conventional thermal current Ithe: 160 A fully enclosed; Rated impulse withstand voltage Uimp: 12 kV; Rated insulation voltage Ui: 1000 V; Rated operational current AC-21A, AC-22A, AC-23A, AC-31B, AC-33B: 160 A; Rated operational power AC-23A: 90 kW at 380-415 V, 110 kW at 500 V, 160 kW at 690 V; Rated short-time withstand current Icw (1 s): 8 kA rms.
Technical Details: Distance between phases: Standard; Fourth pole position: Right Side; Fourth pole type: Switched – Simultaneous Function; Handle color: Black; Handle type: Handle and shaft included; Mounting type: Base mounting; Number of poles: 4P; Operating mode: Front; Position of line terminals: Top In – Bottom Out, Bottom In – Top Out; Power loss at rated operating conditions per pole: 2.4 W; Switch operating mechanism located at the end of the switch (Left Side); Terminal type: Screw terminals; Terminal width: 20 mm; Tightening torque: 15 to 22 N·m according to IEC 60947-1; Transition type: Open.
