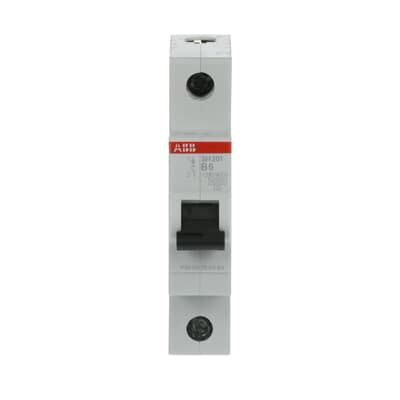

SH201-B6 Miniature Circuit Breaker
Brand: ABB
Manufacturer: ABB
Product ID: 2CDS211001R0065
EAN: 4016779630580
Description: Compact Home SH200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B, C), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 40 A). All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.
Electrical Characteristics: Rated operational voltage 230 V; Operating voltage range 12 to 253 V AC; Rated insulation voltage 440 V; Rated impulse withstand voltage 4 kV (5 kV at 2000 m altitude, 6.2 kV at sea level); Rated current 6 A; Rated short-circuit capacity 6 kA; Rated conditional short-circuit current 6 kA; Rated frequency 50/60 Hz; Power loss 2 W; Tripping characteristic B; Input voltage type AC; Overvoltage category III.
Mechanical and Installation: Number of poles 1; Number of protected poles 1; Tightening torque 2 N·m; Actuator type toggle with I/O markings; Screw terminal type cage terminal; Connecting capacity flexible with ferrule 0.75 to 16 mm², rigid 0.75 to 25 mm², stranded 0.75 to 25 mm², conductor 25/25 mm²; Installation size acc. to DIN 43880 1; Terminal type screw terminals; Mounting on DIN rail TH35-15 and TH35-7.5 acc. to IEC 60715; Mounting position any; Housing material insulation group II, RAL 7035.
Endurance: Electrical endurance 20000 AC cycles; Mechanical endurance 20000 cycles.
Environmental: Operation ambient air temperature -25 to +55 °C; Storage temperature -40 to +70 °C; Reference ambient air temperature 30 °C; Degree of protection IP20 (enclosure with cover IP40); Pollution degree 2; Environmental conditions 28 cycles with 55 °C / 90-96 % RH and 25 °C / 95-100 % RH; Resistance to vibrations 20 cycles with load 0.8 In: 5 g, 5-150-5 Hz; Resistance to shock 25 g for 2 shocks of 13 ms.
Compliance: Complies with IEC/EN 60898-1 standard; RoHS compliant following EU Directive 2011/65/EU and amendment 2015/863; REACH declaration false, does not contain substances > 0.1 mass %; WEEE category 5 small equipment (no external dimension more than 50 cm); Certification agencies EN, IEC; Customs Tariff Code 85362000.
Package: Carton with 10 pieces, gross weight 1.06 kg.
