Product Name:

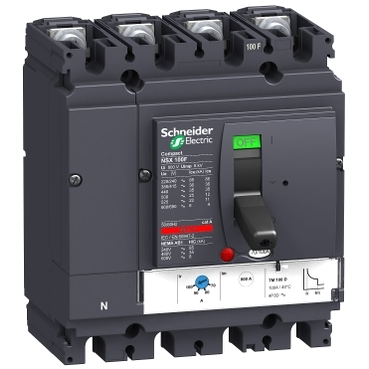

circuit breaker Compact NSX100F – TMD – 63 A – 4 poles 4d
Product Number:
LV429652
Description:
This Compact NSX100F is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36 kA rms at 415 VAC 50/60 Hz. The operational voltage is 690 VAC 50/60 Hz. This product embeds a 63 A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (14.0 cm x 16.1 cm x 8.6 cm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX100F is part of Schneider Electric EcoStruxure Power architecture.
Technical Specifications:
Number of Poles: 4
Rated Current: 63 A at 40 °C
Rated Operational Voltage: 690 V AC 50/60 Hz
Breaking Capacity (Icu): 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Trip Unit Type: Thermal-magnetic (TM-D)
Control Type: Toggle
Mounting Mode: Fixed
Width: 14.0 cm
Height: 16.1 cm
Depth: 8.6 cm
Net Weight: 2.4 kg
Standards: EN/IEC 60947
Certifications: CCC, EAC, Marine
Ingress Protection (IP) Rating: IP40
Impact Protection (IK) Rating: IK07
Pollution Degree: 3 conforming to IEC 60664-1
Overvoltage Category: Class II
Electrical Shock Protection Class: Class II
Suitability for Isolation: Yes conforming to EN/IEC 60947-2
Utilisation Category: Category A
Mechanical Durability: 50000 cycles
Electrical Durability: 10000 cycles at 690 V In, 20000 cycles at 690 V In/2, 30000 cycles at 440 V In, 50000 cycles at 440 V In/2
Connection Pitch: 3.5 cm
Ambient Operating Temperature Range: -25 to 70 °C
Ambient Storage Temperature Range: -50 to 85 °C
Relative Humidity: 0 to 95 %
Package Dimensions (Unit 1): Height: 14.0 cm, Width: 14.6 cm, Length: 18.8 cm
Package Weight (Unit 1): 2.308 kg
Package Dimensions (Unit 2): Height: 30.0 cm, Width: 40.0 cm, Length: 60.0 cm
Package Weight (Unit 2): 21.448 kg
Warranty
18 months
Customs Tariff Code
85362010
Brand
Schneider Electric
