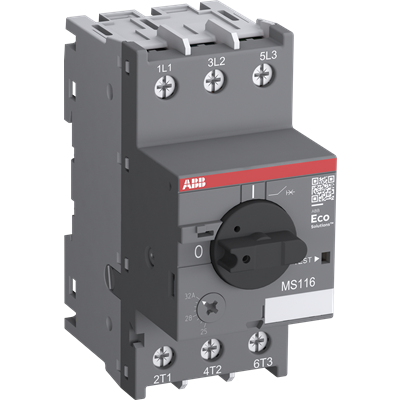

MS116-32 Manual Motor Starter
The MS116-32 manual motor starter, also known as motor protection circuit breaker or manual motor protector, is a compact 4.5 cm width device with a rated operational current of Ie = 32.0 A. It is used to manually switch on and off motors and protect them reliably without the need for a fuse from short-circuits, overload and phase failures.
The manual motor starter features a rated service short-circuit breaking capacity Ics of 10 kA at 400 VAC and trip class 10A. It includes a built-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with clear ON / OFF switch position indication. Suitable for three- and single-phase applications.
Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessories.
Dimensions
Width: 4.5 cm, Height: 9.78 cm, Depth/Length: 8.54 cm, Weight: 0.31 kg
Technical Specifications
Rated service short-circuit breaking capacity (Ics): 10 kA at 230 V AC and 400 V AC; 3 kA at 440 V AC and 500 V AC; 2 kA at 690 V AC.
Rated ultimate short-circuit breaking capacity (Icu): 16 kA at 230 V AC and 400 V AC; 15 kA at 440 V AC; 10 kA at 500 V AC; 3 kA at 690 V AC.
Rated instantaneous short-circuit current setting (Ii): 480 A
Setting range: 25 to 32 A
Rated operational power AC-3 (Pe): 15 kW (400 V) Three Phase
Rated operational voltage: Main circuit 690 V AC
Rated operational current (Ie): 32 A
Rated frequency: Main circuit 50 Hz and 60 Hz
Rated impulse withstand voltage (Uimp): Main circuit 6 kV
Rated insulation voltage (Ui): 690 V
Power loss at rated operating conditions per pole: 1.9 to 3.1 W
Number of poles: 3P
Conventional free-air thermal current (Ith): Main circuit 32 A
Degree of protection: Housing IP20, Main circuit terminals IP10
Pollution degree: 3
Electrical durability: 50000 cycles; Mechanical durability: 100000 operations
Terminal type: Screw terminals
Connecting capacity main circuit: Flexible with ferrule 0.75 to 6 mm²; insulated ferrule 0.75 to 6 mm²; flexible 1 to 2.5 mm²; flexible 2.5 to 6 mm²; rigid 1 to 2.5 mm²; rigid 2.5 to 6 mm²
Tightening torque main circuit: 2 N·m
Wire stripping length main circuit: 10 mm
Recommended screwdriver: Pozidriv 2
Mounting position: 1 to 6
Mounting on DIN rail: TH35-15 (35 x 15 mm) and TH35-7.5 (35 x 7.5 mm) according to IEC 60715
Minimum mounting distances: Electrical conductive board horizontal up to 400 V 0 mm, up to 690 V 1.5 mm; electrical conductive board vertical 7.5 cm; other device same type horizontal 0 mm; vertical 15 cm
Actuator type: Rotary handle
Contact position indication: ON / OFF
Standards and Certifications
Complies with IEC/EN 60947-1, 60947-2, 60947-4-1, UL 60947-1, 60947-4-1, IEC 60335-2-40 A2L.
UL/CSA Technical Data
Short-circuit current rating (SCCR): 18 kA at 480 V AC and 5 kA at 600 V AC for UL listed fuses or circuit breakers.
Maximum operating voltage UL/CSA: Main circuit 600 V AC
Horsepower rating UL/CSA: ranges from 7.5 Hp to 25 Hp depending on voltage and phase.
Full load amps and locked rotor amps vary by voltage and phase.
Environmental Data
Ambient air temperature: 0 to +40 °C around the enclosure, operation -25 to +70 °C, compensated operation -25 to +55 °C, storage -50 to +80 °C.
Maximum operating altitude permissible: 2000 m
Resistance to shock: 11 ms pulse 25g; resistance to vibrations: 2g 5-150 Hz and 5g 3-150 Hz
Regulatory and Compliance
RoHS compliant according to EU Directive 2011/65/EU and Amendment 2015/863.
Conflict minerals reporting and REACH declaration available.
Packaging
Package Level 1: box with 1 piece, dimensions 9.2 cm width, 10.2 cm depth, 5.0 cm height, gross weight 0.325 kg
Package Level 2: carton with 40 pieces, dimensions 28.0 cm width, 39.5 cm depth, 21.0 cm height, gross weight 13.386 kg
Customs Tariff Code
85362010
