Description

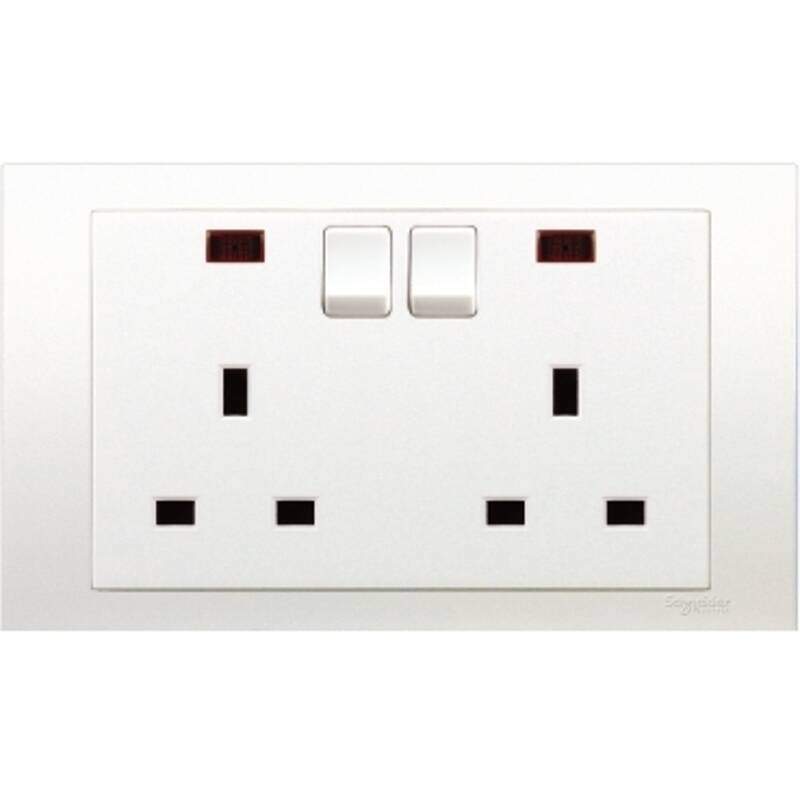

Vivace switched socket by Schneider electric is a complete 2P+E socket-outlet operated by means of Rocker/button. Its Ue rated operational voltage is 250VAC at 50 Hz. Its Ie rated operational current is 13A. This device is designed to be flush mounted. The dimensions of the product are (W) 147mm x (H) 87mm x (D) 35mm. It is made of Polycarbonate (PC). The color of the product is white with glossy surface finish. The Ambient air temperature for operation is from -5°C up to +40°C and Relative Humidity is from 0% to 95%. It reaches IP20 degree of protection.
Specifications
Range: Vivace
Product or component type: Switched socket
Device short name: KB25
Device application: Power supply
Device presentation: Complete product
Switch application: On/off switching
Main colour tint: White
Colour tint: White
Pilot light: Red neon indicator
Outlet poles configuration: 2P + E
Number of gangs: 2 gangs
Material: Polycarbonate: grid plate
Polycarbonate: surround
Polycarbonate: base
Projecting depth: 8 mm
Device mounting: Flush
Mounting support: Wall mounted
fixing mode: By screw M3.5
fixing center: 120.6 mm
Embedding depth: 22.0 mm
Rated current: 13 A at 250 V AC, resistive
Network frequency: 50/60 Hz
Contacts material: Brass and phosphor bronze
Connections – terminals: Pillar terminal
Terminal identifier: L
N
Earth
Tightening torque: 0.4 N.m
Clamping connection capacity: 2 x 4 mm²
3 x 2.5 mm²
Width: 147 mm
Height: 87 mm
Depth: 35 mm
Complementary
Standards: MS 589
SS 145
BS 1363
Ambient air temperature for operation: 0…40 °C
Ambient air temperature for storage: -5…60 °C
Relative humidity: 0…95 %
Operating altitude: <= 2000 m
Environmental characteristic: Indoor use
IP degree of protection: IP20
Environment
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 21.0 cm
Package 1 Width: 31.5 cm
Package 1 Length: 50.0 cm
Package 1 Weight: 175.0 g
Unit Type of Package 2: CAR
Number of Units in Package 2: 50
Package 2 Height: 21.0 cm
Package 2 Width: 31.5 cm
Package 2 Length: 50.0 cm
Package 2 Weight: 8750.0 g
Contractual warranty
Warranty (in months): 18
