Description

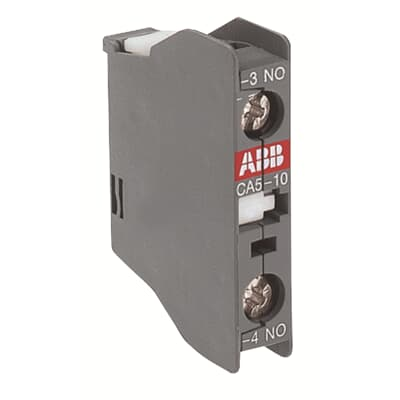

CA5-10 Auxiliary Contact Block
Product ID: 1SBN010010R1010
ABB Type Designation: CA 5-10
EAN: 3471522121004
Description: CA5-10 is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on A serie contactors and N serie contactor relays. CA5-10 is available with 1 N.O. instantaneous contacts for standard industrial environments.
Minimum Order Quantity: 10 piece
Customs Tariff Code: 85389099
Dimensions (cm): Width 1.1, Depth/Length 3.25, Height 4.7
Net Weight (kg): 0.012
Electrical Characteristics: 1 NO auxiliary contact, Rated operational voltage Auxiliary Circuit 690 V, Frequency 50 / 60 Hz, Rated operational current AC-15 up to 6 A depending on voltage, DC-13 current and power ratings specified for voltages from 24 V to 250 V, Short-circuit protection with gG type fuses 10 A.
Operating Durability: Mechanical durability 10 million cycles, Maximum mechanical switching frequency 3600 cycles per hour, Maximum electrical switching frequency 1200 cycles per hour
Insulation Voltage: According to IEC 60947-5-1 690 V and UL/CSA 600 V
Protection Degree: IP20 for auxiliary terminals
Terminal Type: Screw Terminals
Suitable For Use With Contactors: Series including AF45, AF50, AF63, AF75, AF95B, GAF75, and others such as A9 to A110, AL9 series, AE series, TAL series, TAE series, GA and GAE models, UA series with variants, UAF series, N and NL series, TNL series.
Package: Bag of 10 pieces, Package dimensions (cm) Width 6.5, Depth/Length 12.95, Height 0.95, Gross Weight 0.143 kg
Standards and Certifications: CB, CCC, CQC, CSA, CE, UKCA, DNV GL, EAC, GOST, RINA, UL
Environmental Compliance: REACH, RoHS II, TSCA, WEEE Business to Business category 5 Small Equipment
