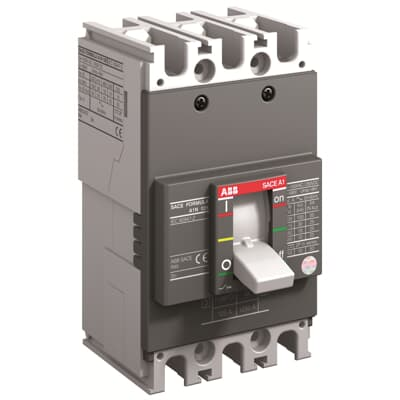

A1B 125 TMF 100-1000 3p F F
Product ID: 1SDA066707R1
EAN: 8015644006174
Description: C.BREAKER FORMULA A1B 125 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 100-1000 A
Type: Automatic Circuit Breaker, Version F, Sub-type A1
Main Type: SACE FORMULA
Number of Poles: 3
Terminal Connection Type: Front
Rated Current (In): 100 A
Rated Impulse Withstand Voltage (Uimp): 6 kV
Rated Insulation Voltage (Ui): 690 V
Rated Operational Voltage: 550 V AC, 250 V DC
Rated Service Short-Circuit Breaking Capacity (Ics): (240 V AC) 12.5 kA, (380 V AC) 9 kA, (415 V AC) 5 kA, (440 V AC) 5 kA, (480 V AC) 5 kA, (500 V AC) 2.5 kA, (250 V DC) 2 Poles in Series 2.5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (240 V AC) 25 kA, (380 V AC) 18 kA, (415 V AC) 18 kA, (440 V AC) 15 kA, (480 V AC) 10 kA, (500 V AC) 5 kA, (250 V DC) 5 kA
Rated Uninterrupted Current (Iu): 125 A
Release: TMF, Release Type: TM
Short-Circuit Performance Level: B
Standards: IEC
Electrical Durability: 1500 cycle
Mechanical Durability: 8500 cycle
Opening Time: CB with SOR 15 ms, CB with UVR 15 ms
Power Loss per Pole: 8 W
Dimensions (cm): Width 7.62, Height 13.0, Depth/Length 6.0
Net Weight (kg): 0.793
Package Level 1: Units 1 piece, Width 13.65 cm, Height 12.4 cm, Depth/Length 11.05 cm, Gross Weight 0.8 kg
Minimum Order Quantity: 1 piece
Customs Tariff Code: 85362090
