Description

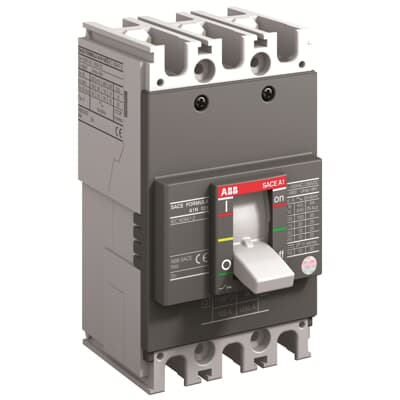

A1B 125 TMF 125-1250 3p F F
Product ID: 1SDA066708R1
Description: C.BREAKER FORMULA A1B 125 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 125-1250 A
Main Type: SACE FORMULA
Product Type: Automatic Circuit Breaker, Version F
Electrical Durability: 1500 cycle
Mechanical Durability: 8500 cycle
Number of Poles: 3
Opening Time: CB with SOR 15 ms and CB with UVR 15 ms
Power Loss per Pole: 11 W
Rated Current (In): 125 A
Rated Impulse Withstand Voltage (Uimp): 6 kV
Rated Insulation Voltage (Ui): 690 V
Rated Operational Voltage: 550 V AC and 250 V DC
Rated Service Short-Circuit Breaking Capacity (Ics): (240 V AC) 12.5 kA, (380 V AC) 9 kA, (415 V AC) 5 kA, (440 V AC) 5 kA, (480 V AC) 5 kA, (500 V AC) 2.5 kA, (250 V DC) 2 Poles in Series 2.5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (240 V AC) 25 kA, (380 V AC) 18 kA, (415 V AC) 18 kA, (440 V AC) 15 kA, (480 V AC) 10 kA, (500 V AC) 5 kA, (250 V DC) 5 kA
Rated Uninterrupted Current (Iu): 125 A
Release: TMF
Release Type: TM
Short-Circuit Performance Level: B
Standards: IEC
Sub-type: A1
Terminal Connection Type: Front
Dimensions: Width 7.62 cm, Height 13 cm, Depth 6 cm
Product Net Weight: 0.795 kg
Package Level 1 Dimensions: Width 13.65 cm, Height 12.4 cm, Depth 11.05 cm
Package Level 1 Gross Weight: 0.8 kg
