Description

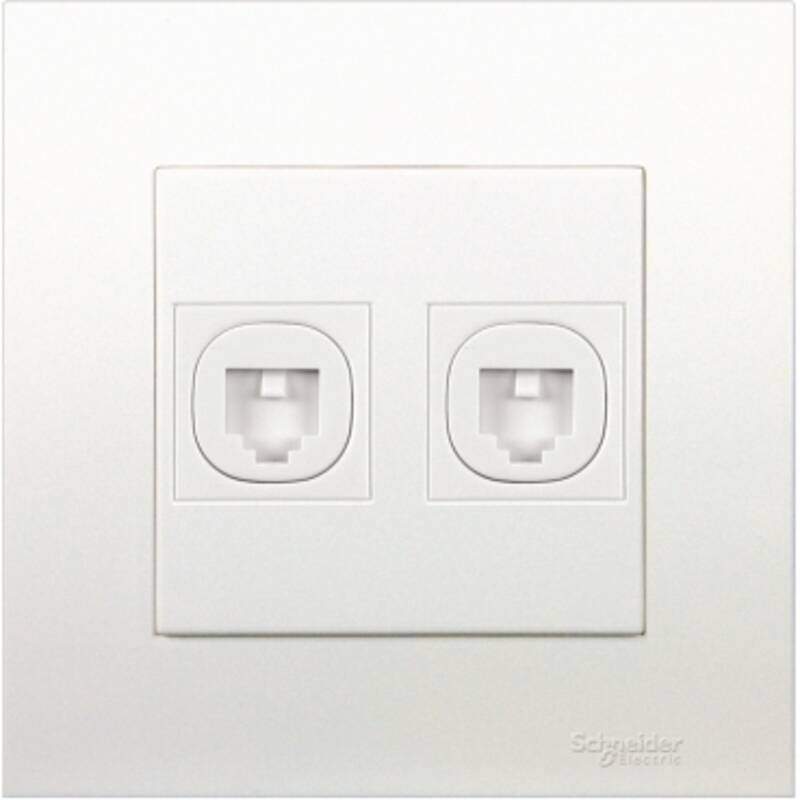

Vivace Telephone socket with shutter by Schneider electric. The device is with 2 gang. This device is designed to be flush mounted. The dimensions of the product is (W) 87mm x (H) 87mmx (D) 35mm. The embedding depth is 28mm. It is made of Polycarbonate (PC). The color of the product is white with glossy surface finish. The Ambient air temperature for operation is from -5°C up to +40°C and the relative humidity is from 0% to 95%. It reaches an IP20 degree of protection. The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle. A slim, trim profile, pleasing to the eye, clean and refined Vivace switch and socket with geometrically balanced design, are available in white and aluminium silver colors. This device is compliant with the IEC 60670-1 standard.
Specifications
Range of product: Vivace
Range: Vivace
Device short name: KB32
Product or component type: Telephone socket
Device presentation: Complete product
Telephone socket type: RJ11 (8 contacts)
Colour tint: Wall: white
Main
Number of gangs: 2 gangs
Colour tint: White
Connector type: M-110 keystone 8 RJ11 connector
Material: Polycarbonate: surround
Polycarbonate: grid plate
Polycarbonate: base
Projecting depth: 8 mm
Device mounting: Flush
Mounting support: Wall mounted
fixing center: 60.3 mm
Embedding depth: 28 mm
Telephone socket type: RJ11 (8 contacts)
Connections – terminals: Clamp terminal
Tightening torque: 0.4 N.m
Width: 87 mm
Height: 87 mm
Depth: 35 mm
Main colour tint: White
Type of cable: 2 pairs
fixing mode: By 2 screws
IP degree of protection: IP20
surface treatment: Untreated
Surface finish: Untreated
Complementary
Standards: IEC 60670-1
Ambient air temperature for operation: -5…40 °C
Ambient air temperature for storage: -5…40 °C
Relative humidity: 0…95 %
Operating altitude: 0…2000 m
Environmental characteristic: Indoor use
IP degree of protection: IP20
Environment
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.200 cm
Package 1 Width: 8.600 cm
Package 1 Length: 8.600 cm
Package 1 Weight: 91.000 g
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 15.000 cm
Package 2 Width: 19.000 cm
Package 2 Length: 10.000 cm
Package 2 Weight: 980.000 g
Unit Type of Package 3: S04
Number of Units in Package 3: 100
Package 3 Height: 30.000 cm
Package 3 Width: 40.000 cm
Package 3 Length: 60.000 cm
Package 3 Weight: 8.370 kg
Packing Units
Warranty (in months): 18
