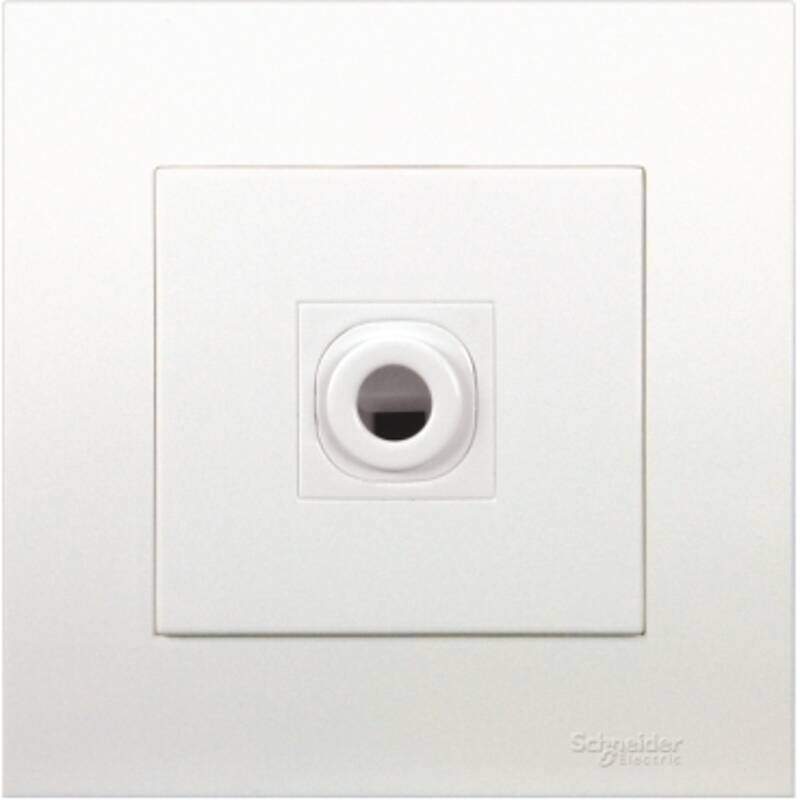

25A 250V Connection Unit
Reference: KB31TB
Vivace connection unit by Schneider electric is a 1 gang complete mechanism. Its Ue rated operational voltage is 250VAC at 50 Hz. Its Ie rated operational current is 25A. This device is designed to be flush mounted. The dimensions of the product are (W) 87mm x (H) 87mm x (D) 35mm. It is made of Polycarbonate (PC). The color of the product is white with glossy surface finish. The Ambient air temperature for operation is from -5°C up to +40°C and Relative Humidity is from 0% to 95%. It reaches IP20 degree of protection. The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle. A slim, trim profile, pleasing to the eye, clean and refined Vivace switch and socket with geometrically balanced design, are available in white and aluminium silver colors. The product complies with the BS 5733 standard.
Specifications
Range: Vivace
Product or component type: Connection unit
Device short name: KB31
Device application: Power supply
Device presentation: Complete mechanism
Main colour tint: White
Colour tint: Wall: white
Number of gangs: 1 gang
Material: Polycarbonate: grid plate
Polycarbonate: surround
Polycarbonate: base
Projecting depth: 8 mm
Device mounting: Flush
Mounting support: Wall mounted
fixing mode: By screw M3.5
fixing center: 60.3 mm
Embedding depth: 30 mm
Rated current: 25 A at 250 V AC, resistive
Network frequency: 50 Hz
Contacts material: Brass and phosphor bronze
Connections – terminals: Pillar terminal
Terminal identifier: L1
L2
N1
N2
E
Tightening torque: 0.4 N.m
Clamping connection capacity: 4 mm²
2.5 mm²
Width: 87 mm
Height: 87 mm
Depth: 35 mm
Standards: BS 5733
Ambient air temperature for operation: -5…40 °C
Ambient air temperature for storage: 0…60 °C
Relative humidity: 0…95 %
Operating altitude: 0…2000 m
Environmental characteristic: Indoor use
IP degree of protection: IP20
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Weight: 106.1 g
Warranty (in months): 18
