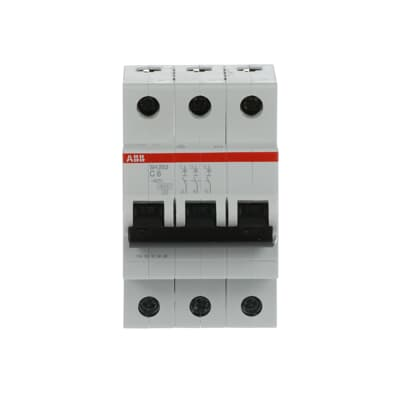

Product: SH203-C6
Manufacturer: ABB
Type: Miniature Circuit Breaker – SH200 – 3P – 6 A – C – (AC) 6 kA
Compact Home SH200 miniature circuit breakers are current limiting devices equipped with two tripping mechanisms: a delayed thermal mechanism for overload protection and an electromechanic mechanism for short circuit protection. These devices are available in different characteristics (B, C), configurations (1P, 1P+N, 2P, 3P, 3P+N, 4P), breaking capacities up to 6 kA at 230/400 V AC, and rated currents up to 40 A, complying with IEC/EN 60898-1 suitable for residential applications.
Electrical Specifications: Rated operational voltage 400 V AC, operational voltage range from 12 V AC to 440 V AC, rated insulation voltage 440 V, rated impulse withstand voltage 4 kV (5 kV at 2000 m altitude, 6.2 kV at sea level), rated current 6 A, tripping characteristic C, rated short-circuit capacity 6 kA, rated conditional short-circuit current 6 kA, frequency 50/60 Hz.
Mechanical and Design Data: 3 poles, mechanical and electrical endurance 20000 cycles, actuator toggle type with I/O marking, actuator material insulation group II black, sealable, housing material insulation group II, RAL 7035, tightening torque 2 N·m, screw terminals with cage terminal type for a range of conductor sizes, installation size according to DIN 43880 1 module.
Environmental and Protection: Operating temperature -25 to +55 °C, storage temperature -40 to +70 °C, degree of protection IP20 (IP40 with enclosure cover), pollution degree 2, resistance to vibrations and shocks tested per IEC standards, power loss 6 W total, power loss per pole 2 W, overvoltage category III.
Standards and Compliance: Complies with IEC/EN 60898-1, RoHS and REACH compliant, WEEE category 5 (small equipment), business to business classification.
Dimensions (cm): Width 5.25, Height 8.5, Depth 6.9, Built-in depth 6.9.
Weight (kg): Net weight 0.306, pole net weight 0.125, package gross weight 0.326.
Accessories Available: No
Customs Tariff Code: 39121603
