Description

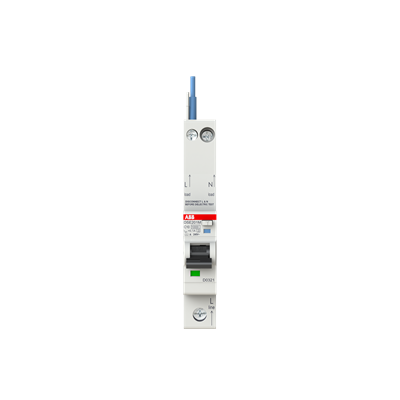

DSE201 M C10 A100 – N Blue
Product ID: 2CSR275151R2104
Catalog Description: Residual Current Circuit Breaker with Overcurrent Protection DSE201 M – 1P+N – 100 mA – 10 A – C – Type A
Long Description: 1P+N electronic RCBO in one-module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). Presence of neutral (blue or black) and functional earth (white) flying leads. The neutral is unswitched
Type of Residual Current: Type A
Maximum Operating Voltage: 264 V
Test Voltage (Ut): 195 … 264 V
Dielectric Test Voltage: 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu): 15 kA
Rated Residual Breaking Capacity (IΔm): 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics): 7.5 kA
Maximum Surge Current: 0.25 kA
Power Supply Connection: Bottom
Contact Position Indication: Red ON / Green OFF
Energy Limiting Class: 3
Electrical Endurance: 10000 cycle
Mechanical Endurance: 20000 cycle
Number of Protected Poles: 1
Number of Poles: 1P+N
Number of Modular Spacings per DIN Rail: 1
Fault Indication: Blue Window
Operating Characteristic: Instantaneous
Position of Neutral Terminals: Right
Tightening Torque: Top 1.2 N·m, Bottom 2.8 N·m
Accessory Type: Auxiliary contact, Auxiliary/Signal contact, Shunt trip, Undervoltage release, Overvoltage release, Bottom fitting auxiliary contact
Actuator Type: Toggle – Insulation group II, black, sealable in ON-OFF positions
Earthing Switch Type: Undelayed
Housing Type: Insulation group II, RAL 7035
Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal
Options Provided: None
Accessories Available: Yes
Connecting Capacity: Busbar 10 mm², Rigid 1…35 mm², Flexible 1…16 mm²
Rated Cross-Section: Solid-Core 1…35 mm², Multi-Wired 1 … 25 mm²
Wire Stripping Length: Top 11 mm, Bottom 12.5 mm
Terminal Type: Screw Terminals
Short-Circuit Current Rating (SCCR): 0.1 A
Tripping Characteristic: C
Rated Operational Voltage: acc. to IEC 60898-1 240 V
Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp): 4 kV
Input Voltage Type: AC
Rated Current (In): 10 A
Rated Residual Current: 100 mA
Rated Short-Circuit Capacity: 10 kA
Rated Conditional Short-Circuit Current (Inc): 10 kA
Rated Frequency (f): 50 … 60 Hz
Power Loss: Total 1.8 W
Overvoltage Category: III
RoHS Declaration: 9AKK106930A1510
RoHS Information: Following EU Directive 2011/65/EU
RoHS Date: 20160829
REACH Declaration: Reach Declaration – ABB S.p.A. Vittuone
REACH Information: True – contains substances > 0.1 mass percentage
REACH Date: 20240429
Conflict Minerals Reporting Template: Conflict Minerals Reporting Template
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B: Business To Consumer
Ambient Air Temperature Operation: -25 … 55 °C
Reference Ambient Air Temperature: 30 °C
Degree of Protection: IP20, IP40
Pollution Degree: 2
Environmental Conditions: 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 %
Resistance to Vibrations: 20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 Hz
Resistance to Shock as per IEC 60068-2-27: 30g / 2 shocks / 13 ms
Dimensions: Width 1.8 cm, Height 11.5 cm, Depth 6.9 cm, Built-In Depth 6.89 cm
Product Net Weight: 200 g
Mounting Type: DIN-Rail
Mounting Position: Any
Customs Tariff Code: 85362010
