IE2 High Efficiency Cast Iron Motors, 3 kW, 400 V (3GBP102324-ADB)
General Information
Product ID: 3GBP102324-ADB
ABB Type Designation: M3BP 100LD 4
Catalog Description: IE2 High Efficiency Cast Iron Motors, 3 kW, 400 V (3GBP102324-ADB)
Ordering
ABB Type Designation: M3BP 100LD 4
Invoice Description: M3BP 100LD 4

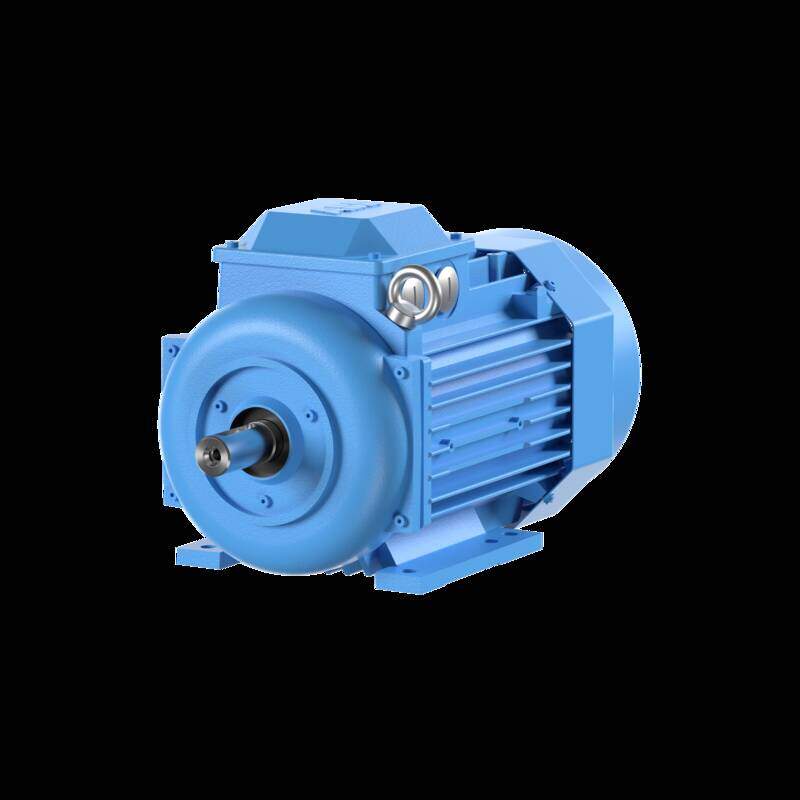

Product Name: 3-Phase squirrel cage motor
Product Type: 3BP2__M3BP_IE2_CI
Country of Origin: Spain, Finland, China, Poland
Customs Tariff Number: 85015220
Medium Description: 3kW, 4 Poles, Frame Size 100, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBP102324-ADB)
Short Description: 3kW, 4P, Frame Size 100, 3PH, 400V, 50Hz, IP55, IMB3/IM1001
Electrical
Connection Configuration: D
Temperature Class Default: —
Input Voltage (Uin): 400 V
Frequency ( _f_): 50 Hz
Output Power: 3 kW
Altitude: 1000 m
Ambient Temperature: 40 °C
IC Class: IC411
IE Class Data (50 Hz): IE Class IE2
Full Load (100%) 86.8 %
Partial Load (75%) 86.9 %
Partial Load (50%) 85.3 %
IE Class Data (60 Hz): IE Class IE2
Full Load (100%) 87.6 %
Partial Load (75%) 87.2 %
Partial Load (50%) 85.0 %
IP Class: IP55
Insulation Class: ICLF
Direction of Rotation: Both sides
Number of Poles (High): 4
Two Speed Motor: No
Type of Duty: S1
Voltage Code: D
Mechanical
Frame Material: Cast Iron
Frame Size: 100
Bearing: 6206-2Z/C3
Bearing NDE: 6205-2Z/C3
Lubrication: For life
IM Class: IMB3 IM1001
Terminator Box Location: Top
Dimensions
Product Net Depth / Length: 381 mm
Product Net Height: 247 mm
Product Net Width: 200 mm
Product Net Weight: 38 kg
Gross Weight: 43 kg
Environmental
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
SCIP: 54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland
External Classifications and Standards
Standards: IEC 60034-1
UNSPSC: 26101100
