General Information
Product ID: 3GBA133410-ADDIN
ABB Type Designation: M2BAX 132MLA 6

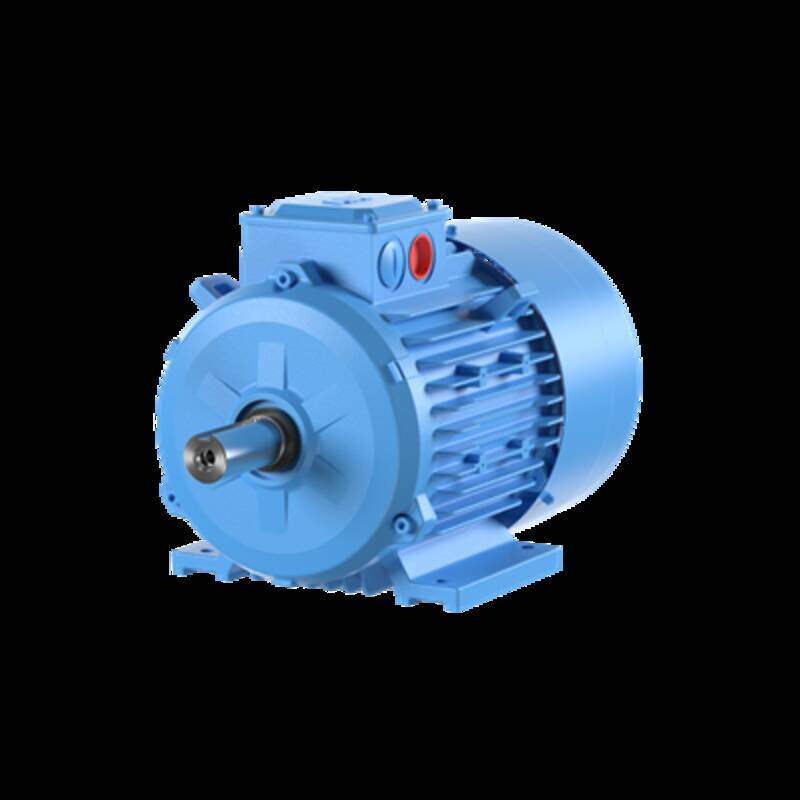

Catalog Description: IE3 (BIS) Premium Efficiency Cast Iron Motors, 5.5 kW, 415 V (3GBA133410-ADDIN)
Ordering
Invoice Description: M2BAX 132MLA 6
Product Name: 3-Phase squirrel cage motor
Product Type: IBA3__M2BAX_IE3_CI
Country of Origin: India
Customs Tariff Number: 85015220
Medium Description: 5.5kW, 6 Poles, Frame Size 132, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA133410-ADDIN)
Short Description: 5.5kW, 6P, Frame Size 132, 3PH, 415V, 50Hz, IP55, IMB3/IM1001
Electrical
Electrical Data: | Conn | Temp Class | Network Freq | Network Voltage | Power | Speed | Current | Power Factor | Efficiency | Torque | IS/IN |
| — | — | — | — | — | — | — | — | — | — | — |
| D | — | 50 Hz | 415 V | 5.50 kW | 965 r/min | 12.70 A | 0.680 | 88.00 % | 54.00 N·m | 7.50 |
Connection Configuration: D
Temperature Class Default: —
Input Voltage (Uin): 415 V
Frequency ( f): 50 Hz
Output Power: 5.5 kW
Altitude: 1000 m
Ambient Temperature: 50 °C
IC Class: IC411
IE Class Data (50 Hz): IE Class IE3
Full Load (100%) 88.0 %
Partial Load (75%) 88.3 %
Partial Load (50%) 87.3 %
IP Class: IP55
Insulation Class: ICLF
Direction of Rotation: Both sides
Number of Poles (High): 6
Two Speed Motor: No
Type of Duty: S1
Voltage Code: D
Mechanical
Frame Material: Cast Iron
Frame Size: 132
Bearing: 6208-2Z/C3
Bearing NDE: 6208-2Z/C3
IM Class: IMB3 IM1001
Terminator Box Location: D-End top
Dimensions
Product Net Depth / Length: 586 mm
Product Net Height: 302 mm
Product Net Width: 270 mm
Product Net Weight: 97 kg
Gross Weight: 102 kg
Environmental
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
External Classifications and Standards
UNSPSC: 26101100
