Description

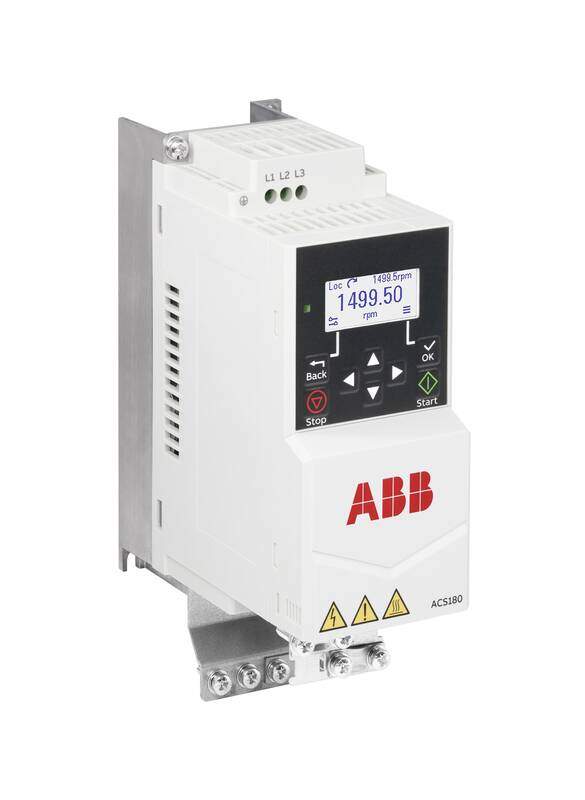

Catalog Description: LV AC machinery drive module, IEC: Pn 0.55 kW, 1.8 A, 400 V, UL: Pld 0.75 Hp, 1.6 A, 460 V (ACS180-04S-01A8-4)
Long Description: The ACS180 is a compact, robust, and adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers.This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB’s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
General Information
Product ID: 3AXD50000662562
ABB Type Designation: ACS180-04S-01A8-4
Global Commercial Alias: ACS180-04S-01A8-4
Ordering
Customs Tariff Number: 8504409999
HS Code: 850440 — ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description: ACS180-04S-01A8-4 PN:0.55kW, IN:1.8A
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Selling Unit of Measure: piece
Dimensions
Product Net Weight: 0.9 kg
Product Net Depth / Length: 143 mm
Product Net Height: 209 mm
Product Net Width: 70 mm
Package Level 1 Depth / Length: 225 mm
Package Level 1 Height: 115 mm
Package Level 1 Width: 220 mm
Package Level 1 Units: carton 1 piece
Technical
Number of Phases: 3-phase
Degree of Protection: IP20
Enclosure Type NEMA: Open Type
Operating Humidity (RHamb): 5 … 95 %
Power Factor: 0.98
Frequency ( f): 47 … 63 Hz
Frame Size: R0
Input Voltage (Uin): 380 … 480 V
Mounting Type: Module
Communication Protocol: MODBUS
Number of Hardware Interfaces: Industrial Ethernet 0, Other 1, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 0
Includes: Control unit, PC connection
Analog Inputs: 2
Analog Outputs: 1
Number of Digital In/Outputs: 4 / 2
Output Current, Normal Use (In): 1.8 A
Output Current, Light-Overload Use (ILD): 1.7 A
Output Current, Heavy-Duty Use (IHD): 1.2 A
Output Power, Normal Use (Pn): 0.55 kW
Output Power, Light-Overload Use (PLD): 0.55 kW
Output Power, Heavy-Duty Use (PHD): 0.37 kW
Apparent Power Output: 1.2 kV·A
Efficiency Level: IE2
Standby Loss: 7 W
Temperature Rating: Maximum 40 °C
Technical UL
Output Current, Light-Overload Use (UL): 1.6 A
Output Current, Heavy-Duty Use (UL): 1.1 A
Output Power, Light-Overload Use (UL): 0.75 Hp
Output Power, Heavy-Duty Use (UL): 0.5 Hp
Environmental
SCIP: bc3f21f6-ab11-453c-8372-42a57e38dab9 Finland
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
External Classifications and Standards
UNSPSC: 39122001
