Description

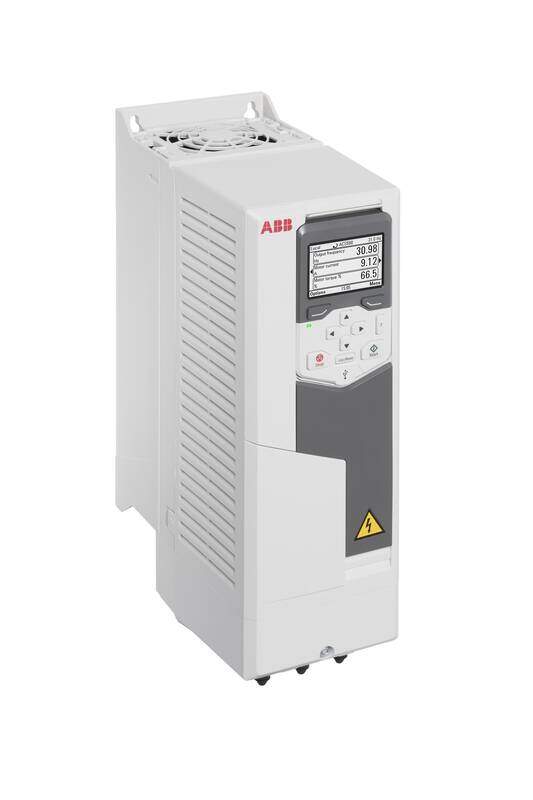

Product Name: ACS580-01-07A3-4
Catalog Description: LV AC general purpose wall-mounted drive, IEC: Pn 3 kW, 7.2 A, 400 V (ACS580-01-07A3-4)
Long Description: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
General Information
Product ID: 3AXD50000038951
Global Commercial Alias: ACS580-01-07A3-4
ABB Type Designation: ACS580-01-07A3-4
EAN: 6438177459217
Ordering
Customs Tariff Number: 85044087
HS Code: 850440
Invoice Description: ACS580-01-07A3-4 PN: 3 kW, IN: 7.2 A
Made To Order: Yes
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Selling Unit of Measure: piece
Dimensions
Product Net Weight: 4.6 kg
Product Net Depth / Length: 22.3 cm
Product Net Height: 37.3 cm
Product Net Width: 12.5 cm
Technical
Number of Phases: 3-phase
Degree of Protection: IP21
Enclosure Type NEMA: Type1
Altitude: 1000 m
Operating Humidity (RHamb): 5 … 95 %
Sound dB (A): 59 dB(A)
Frequency (f): 47.5 … 63 Hz
Frame Size: R1
Input Voltage (Uin): 380 … 480 V
Mounting Type: Wall-mounted
Communication Protocol: CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP
Number of Hardware Interfaces: Industrial Ethernet 0, Other 2, Parallel 2, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1
Includes: With control unit, With PC connection
Analog Inputs: 2
Analog Outputs: 2
Number of Digital In/Outputs: 6 / 3
Output Current, Normal Use (In): 7.2 A
Output Current, Light-Overload Use (ILD): 6.8 A
Output Current, Heavy-Duty Use (IHD): 5.6 A
Output Power, Normal Use (Pn): 3 kW
Output Power, Light-Overload Use (PLD): 3.0 kW
Output Power, Heavy-Duty Use (PHD): 2.2 kW
Environmental
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
External Classifications and Standards
ETIM 9: EC001857 – Frequency converter =< 1 kV
UNSPSC: 39122001
