Description
General Information
Extended Product Type: AF305-40-11-13
Product ID: 1SFL587102R1311
EAN: 7320500505007

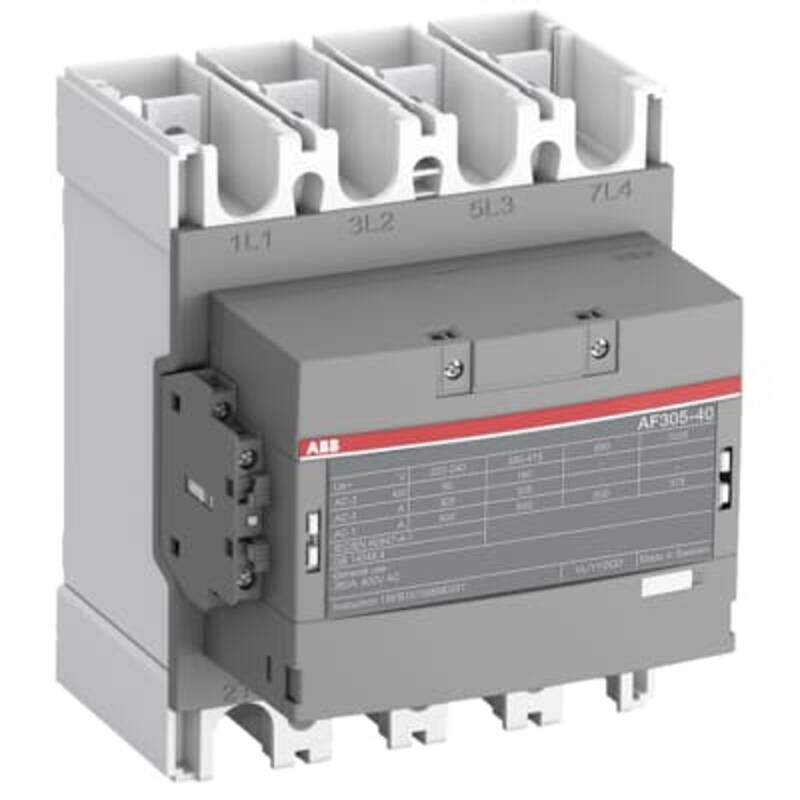

Catalog Description: AF305-40-11-13 Contactor
Long Description: The AF305-40-11-13 is a 4 pole – 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 160 kW / 400 V AC (AC-3) / and switching power circuits up to 500 A (AC-1) or 350 A UL general use. Thanks to the AF technology, the contactor has a w… ide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. Includes Mounting kit, containing all neccessary screws, washers and sockets for connecting the terminals, and screws for mounting the device.
Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85364900
Dimensions
Product Net Width: 18.4 cm
Product Net Depth / Length: 18.0 cm
Product Net Height: 22.54 cm
Product Net Weight: 5.7 kg
Technical
Number of Main Contacts NO: 4
Number of Main Contacts NC: 0
Number of Auxiliary Contacts NO: 1
Number of Auxiliary Contacts NC: 1
Number of Poles: 4P
Rated Operational Voltage: Main Circuit 1000 V
Rated Frequency (f): Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith): acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 500 A
Rated Operational Current AC-1 (Ie): (690 V) 40 °C 500 A
Rated Operational Current AC-3 (Ie): (415 V) 55 °C 305 A
Rated Operational Power AC-3 (Pe): (415 V) 160 kW
Rated Insulation Voltage (Ui): acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
Rated Impulse Withstand Voltage (Uimp): Main Circuit 8 kV
Mechanical Durability: 5 million
Maximum Mechanical Switching Frequency: 300 cycles per hour
Rated Control Circuit Voltage (Uc): 50 Hz 100 … 250 V
60 Hz 100 … 250 V
DC Operation 100 … 250 V
Terminal Type: Main Circuit: Bars
Product Name: Block Contactor
Technical UL/CSA
Maximum Operating Voltage UL/CSA: Main Circuit 600 V
General Use Rating UL/CSA: (600 V AC) 350 A
Environmental
Ambient Air Temperature: Close to Contactor without Thermal O/L Relay (0.85 … 1.1 Uc) -40 … 70 °C
Maximum Operating Altitude Permissible: Without Derating 3000 m
Container Information
Package Level 1 Units: box 1 piece
Package Level 1 Width: 21.2 cm
Package Level 1 Depth / Length: 26.2 cm
Package Level 1 Height: 21.2 cm
Package Level 1 Gross Weight: 6.4 kg
Package Level 1 EAN: 7320500505007
External Classifications and Standards
Object Classification Code: Q
ETIM 7: EC000066 – Power contactor, AC switching
ETIM 8: EC000066 – Power contactor, AC switching
ETIM 9: EC000066 – Power contactor, AC switching
eClass: V11.0 : 27371003
UNSPSC: 39121529
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
