Description
General Information
Product Name: AF63-30-22 20-60V DC
Extended Product Type: AF63-30-22 20-60V DC
Product ID: 1SBL377001R7222
EAN: 3471522236722

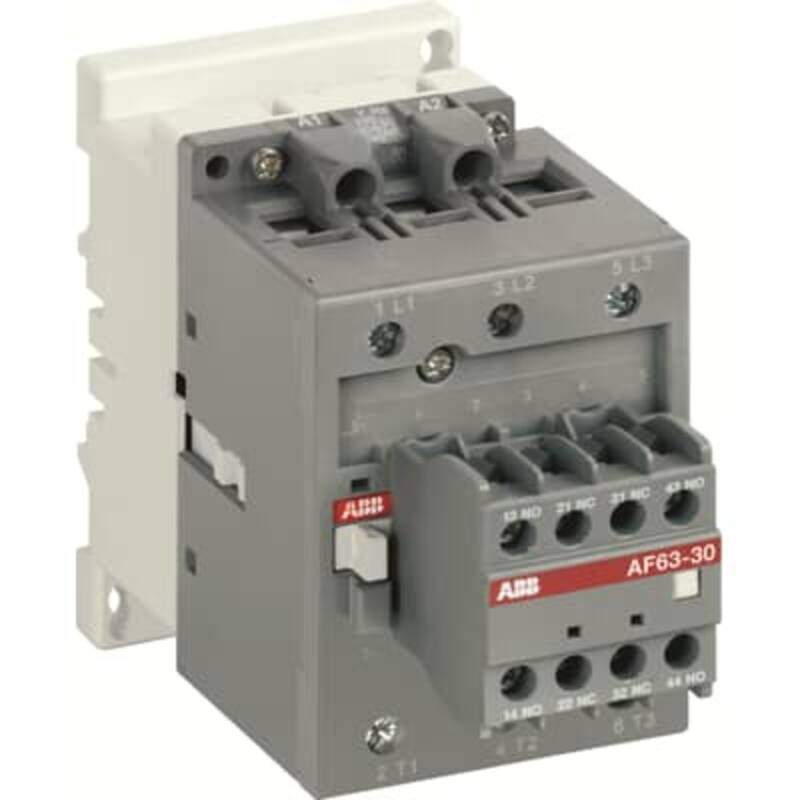

Catalog Description: AF63-30-22 20-60V DC Contactor
Long Description: AF63 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits… The AF… contactors are fitted with an electronic coil interface which accepts a wide control voltage range, on AC 50/60 Hz or DC supplies. The same contactor can accept various supply voltages according to the different countries where the electrical equipment will be installed, or some fluctuation in the control voltage due to the local supply or network. The AF… contactors are also fully suitable for operation in AC or DC control circuit liable to voltage interruptions or voltage dip risks. Advantages: – Wide voltage range, e.g. 100 … 250 V AC and DC – Can manage large voltage variations – Reduced power consumption – Very distinct closing and opening – Noise free – Can withstand voltage interruptions or voltage dips in the control supply (≤ 20 ms). The AF… series 2-stack 3-pole contactors are of the block type design. – Main poles and auxiliary contact blocks: 3 main poles, 2nd stack with 4 built-in auxiliary contacts, front and side-mounted add-on auxiliary contact blocks – Control circuit: AC or DC operated – Accessories: a wide range of accessories is available.
Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85364900
Dimensions
Product Net Width: 70 mm
Product Net Depth / Length: 140.3 mm
Product Net Height: 110 mm
Product Net Weight: 1.22 kg
Technical
Number of Main Contacts NO: 3
Number of Main Contacts NC: 0
Number of Auxiliary Contacts NO: 2
Number of Auxiliary Contacts NC: 2
Number of Poles: 3P
Rated Operational Voltage: Auxiliary Circuit 690 V
Main Circuit 690 V
Rated Frequency (f): Auxiliary Circuit 50 / 60 Hz
Main Circuit 50 / 60 Hz
Rated Control Circuit Voltage (Uc): DC Operation 20 … 60 V
Terminal Type: Screw Terminals
Technical UL/CSA
Maximum Operating Voltage UL/CSA: Main Circuit 600 V
Container Information
Package Level 1 Units: 1 piece
Package Level 1 Width: 142 mm
Package Level 1 Depth / Length: 190 mm
Package Level 1 Height: 136 mm
Package Level 1 Gross Weight: 1.22 kg
Package Level 1 EAN: 3471522236722
External Classifications and Standards
Object Classification Code: Q
ETIM 7: EC000066 – Power contactor, AC switching
ETIM 8: EC000066 – Power contactor, AC switching
ETIM 9: EC000066 – Power contactor, AC switching
eClass: V11.0 : 27371003
UNSPSC: 39121529
