General Information

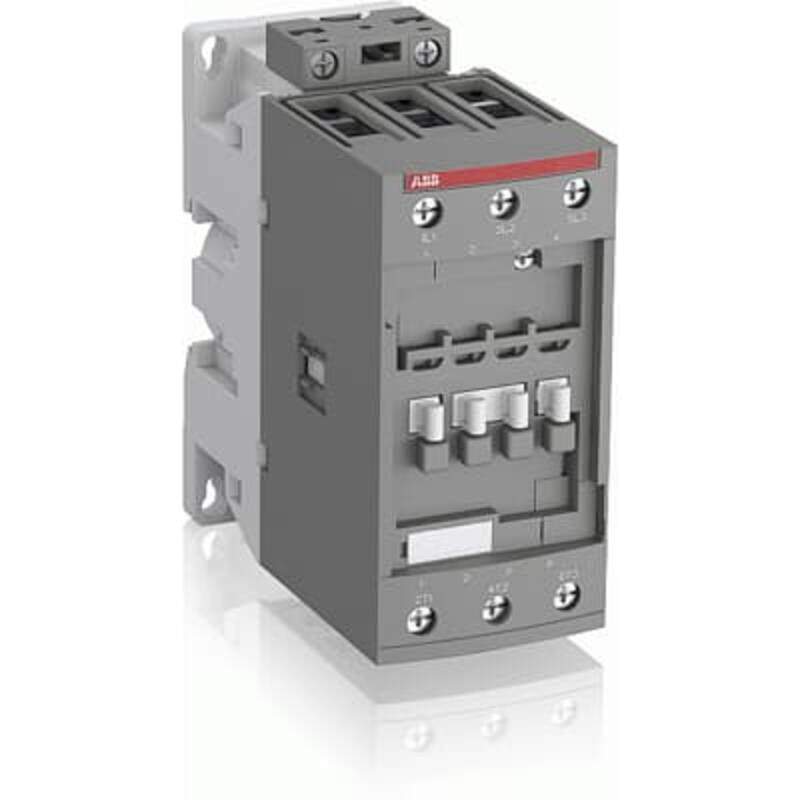

Extended Product Type: AF65-30-00-12
Product ID: 1SBL387001R1200
EAN: 3471523132627
Catalog Description: AF65-30-00-12 48-130V50/60HZ-DC Contactor
Long Description: The AF65-30-00-12 is a 3 pole – 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 30 kW / 400 V AC (AC-3) or 50 hp / 480 V UL and switching power circuits up to 105 A (AC-1) or 90 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range… (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85364900
Dimensions
Product Net Width: 5.5 cm
Product Net Depth / Length: 11.1 cm
Product Net Height: 12.55 cm
Product Net Weight: 0.97 kg
Technical
Number of Main Contacts NO: 3
Number of Main Contacts NC: 0
Number of Auxiliary Contacts NO: 0
Number of Auxiliary Contacts NC: 0
Number of Poles: 3P
Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22
Rated Operational Voltage: Main Circuit 690 V
Rated Frequency (f): Control Circuit 50 / 60 Hz
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith): acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 105 A
Rated Operational Current AC-1 (Ie): (690 V) 40 °C 105 A
(690 V) 60 °C 90 A
(690 V) 70 °C 80 A
Rated Operational Current AC-3 (Ie): (415 V) 60 °C 65 A
(440 V) 60 °C 65 A
(500 V) 60 °C 55 A
(690 V) 60 °C 39 A
(380 / 400 V) 60 °C 65 A
(220 / 230 / 240 V) 60 °C 65 A
Rated Operational Power AC-3 (Pe): (400 V) 30 kW
(415 V) 37 kW
(440 V) 37 kW
(500 V) 37 kW
(690 V) 37 kW
(380 / 400 V) 30 kW
(220 / 230 / 240 V) 18.5 kW
Rated Insulation Voltage (Ui): acc. to IEC 60947-4-1 690 V
acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp): 6 kV
Maximum Mechanical Switching Frequency: 3600 cycles per hour
Rated Control Circuit Voltage (Uc): 50 Hz 48 … 130 V
60 Hz 48 … 130 V
DC Operation 48 … 130 V
Power Loss: at Rated Operating Conditions AC-1 per Pole 7 W
at Rated Operating Conditions AC-3 per Pole 2.7 W
Terminal Type: Screw Terminals
Technical UL/CSA
Maximum Operating Voltage UL/CSA: Main Circuit 600 V
General Use Rating UL/CSA: (600 V AC) 90 A
Horsepower Rating UL/CSA: (120 V AC) Single Phase 5 hp
(200 … 208 V AC) Three Phase 20 hp
(220 … 240 V AC) Three Phase 25 hp
(240 V AC) Single Phase 15 hp
(440 … 480 V AC) Three Phase 50 hp
(550 … 600 V AC) Three Phase 60 hp
Environmental
Ambient Air Temperature: Close to Contactor Fitted with Thermal O/L Relay -40 … 70 °C
Close to Contactor without Thermal O/L Relay -40 … 70 °C
Close to Contactor for Storage -60 … +80 °C
Maximum Operating Altitude Permissible: Without Derating 3000 m
Pollution Degree: 3
Container Information
Package Level 1 Units: box 1 piece
Package Level 1 Width: 15.0 cm
Package Level 1 Depth / Length: 15.0 cm
Package Level 1 Height: 9.7 cm
Package Level 1 Gross Weight: 1.07 kg
Package Level 1 EAN: 3471523132627
External Classifications and Standards
Object Classification Code: Q
ETIM 7: EC000066 – Power contactor, AC switching
ETIM 8: EC000066 – Power contactor, AC switching
ETIM 9: EC000066 – Power contactor, AC switching
eClass: V11.0 : 27371003
UNSPSC: 39121529
IDEA Granular Category Code (IGCC): 4758 >> Iec Contactors
E-Number (Finland): 3707047
E-Number (Sweden): 3210043
