Description
General Information
Extended Product Type: CAL18-11B
Product ID: 1SFN010720R3311
EAN: 7320500256312

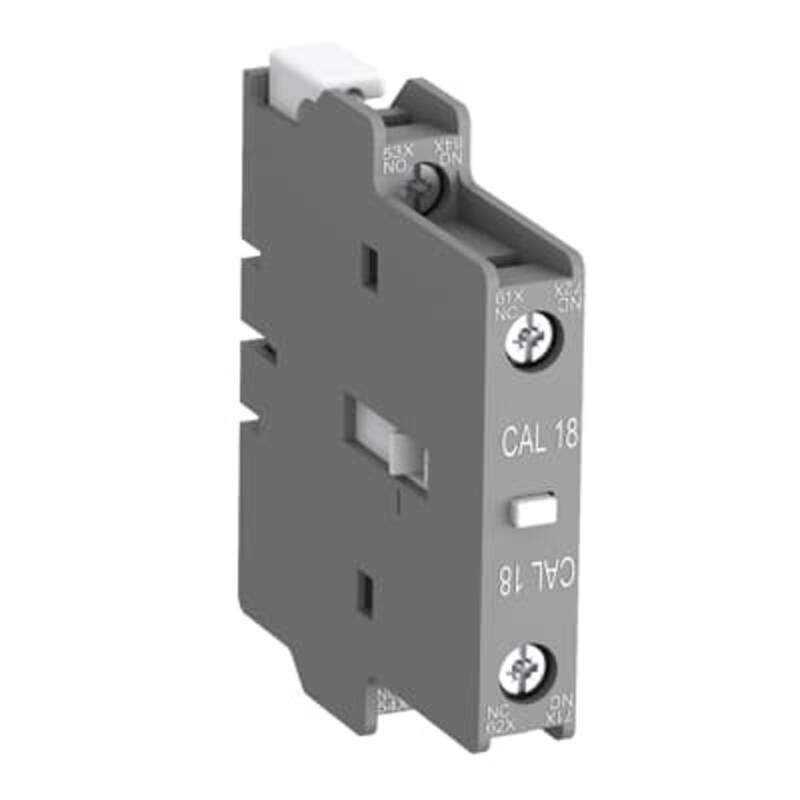

Catalog Description: CAL18-11B Auxiliary Contact Block
Long Description: 2 pole screw type side mounted auxilliary contact block fitted outside CAL18-11, instantaneous N.O. and N.C. contacts, suitable for standard industrial environments
Ordering
Minimum Order Quantity: 2 piece
Customs Tariff Number: 85369010
Dimensions
Product Net Width: 64.5 mm
Product Net Depth / Length: 17.1 mm
Product Net Height: 74 mm
Product Net Weight: 0.04 kg
Technical
Number of Auxiliary Contacts NO: 1
Number of Auxiliary Contacts NC: 1
Rated Operational Voltage: Auxiliary Circuit 24 … 690 V
Power Loss: at Rated Operating Conditions per Pole 0.15 W
Terminal Type: Screw Terminals
Suitable For: AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF2850, A145, A185, A210, A260, A300, AF145, AF185, AF210, AF260, AF300
Suitable for Product Class: Block Contactors
Product Name: Auxiliary Contact Block
Container Information
Package Level 1 Units: bag 1 piece
Package Level 1 Width: 64.5 mm
Package Level 1 Depth / Length: 74 mm
Package Level 1 Height: 34.2 mm
Package Level 1 Gross Weight: 0.05 kg
Package Level 1 EAN: 7320500256312
External Classifications and Standards
Object Classification Code: K
ETIM 7: EC000041 – Auxiliary contact block
ETIM 8: EC000041 – Auxiliary contact block
ETIM 9: EC000041 – Auxiliary contact block
eClass: V11.0 : 27371302
UNSPSC: 39121522
IDEA Granular Category Code (IGCC): 4743 >> Auxiliary contact block
E-Number (Finland): 3709264
E-Number (Norway): 4116023
E-Number (Sweden): 3228822
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
