Description

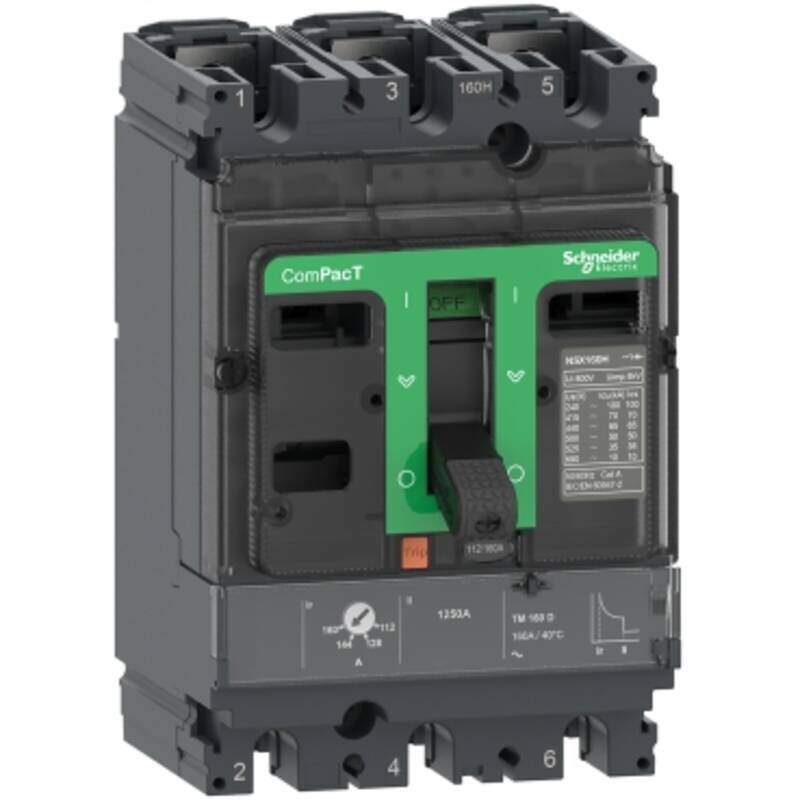

Circuit breaker, ComPacT NSX100B, 25kA/415VAC, 3 poles, TMD trip unit 80A
Reference: C10B3TM080
Brand: Schneider Electric
Description: This ComPacT NSX100B is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 80A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (10.5cm x 16.1cm x 8.6cm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX100B is part of Schneider Electric EcoStruxure Power architecture.
Specifications
Range: ComPacT
Product name: ComPacT NSX
Device short name: NSX100B
Product type: Circuit breaker
Device application: Distribution
Poles description: 3P
Protected poles description: 3D
Rated current [In]: 80 A at 40 °C
Rated operational voltage [Ue]: 690 V AC 50/60 Hz
Network type: AC
Network frequency: 50/60 Hz
Suitability for isolation: Yes conforming to EN/IEC 60947-2
Utilisation category: Category A
Breaking capacity: 40 kA Icu at 220/240 V AC 50/60 Hz; 25 kA Icu at 380/415 V AC 50/60 Hz; 20 kA Icu at 440 V AC 50/60 Hz; 15 kA Icu at 500 V AC 50/60 Hz (IEC 60947-2)
Breaking capacity code: B 25 kA 415 V AC
Trip unit name: TM-D
Trip unit technology: Thermal-magnetic
Trip unit protection functions: LI
Control type: Toggle
Mounting mode: Fixed
Main
Rated insulation voltage [Ui]: 800 V AC 50/60 Hz
Rated impulse withstand voltage [Uimp]: 8 kV
Rated service breaking capacity [Ics]: 40 kA at 220/240 V AC; 25 kA at 380/415 V AC; 20 kA at 440 V AC; 7 kA at 500 V AC (IEC 60947-2)
Mechanical durability: 50000 cycles
Electrical durability: 50000 cycles at 440 V In/2; 30000 cycles at 440 V In; 20000 cycles at 690 V In/2; 10000 cycles at 690 V In
Power dissipation per pole: 8.77 W
Mounting support: Backplate
Mounting position: Horizontal and vertical; Flat on the back
Upside connection: Front
Downside connection: Front
Connection pitch: 3.5 cm
Protection type: L: overload protection (thermal); I: short-circuit protection (magnetic)
Trip unit rating: 80 A at 40 °C
Long-time pick-up adjustment type Ir: Adjustable
Long-time pick-up adjustment range Ir: 0.7…1 x In
Long-time delay adjustment type tr: Fixed
Long-time delay range tr: 120…400 s at 1.5 x In; 15 s at 6 x Ir
Instantaneous pick-up adjustment type Ii: Fixed
Instantaneous pick-up range Ii: 640 A
Earth-leakage protection: Without
Number of slots: 5
Width (W): 10.5 cm
Height (H): 16.1 cm
Depth (D): 8.6 cm
Net weight: 2.05 kg
Complementary
Standards: EN/IEC 60947-2
Overvoltage category: III
Electrical shock protection class: Class II on front face
Pollution degree: 3 conforming to IEC 60664-1
IP degree of protection: IP40 conforming to IEC 60529
IK degree of protection: IK07 conforming to IEC 62262
Ambient air temperature for operation: -25…70 °C
Ambient air temperature for storage: -50…85 °C
Relative humidity: 0…95 %
Operating altitude: 0…2000 m without derating; 2000 m…5000 m with derating
Packaging
Package 1: Unit type PCE, 1 unit, height 14 cm, width 11 cm, length 19 cm, weight 1.781 kg
Package 2: Unit type S03, 7 units, height 30 cm, width 30 cm, length 40 cm, weight 12.86 kg
Warranty: 18 months
Environmental Data
Total lifecycle carbon footprint: 155 kg CO2 eq.
Packaging made with recycled cardboard: Yes
Repair services: No
Recyclability potential: 54 %
Take-back: No
Features
Schneider Electric green signature style for the entire ComPacT range. Estimated 40% reduction of wiring time for panel builders. Easier installation thanks to a new ergonomic front-plate design. Confidence that all auxiliaries are in the right spot and the coil rating is correct. Ergonomic new toggle for easier breaker manual operation.
Documents
Available: Product datasheet, Instruction sheet, Environmental Disclosure, User guide, Catalog, CAD files, Declarations of conformity, Certificates.
Customs Tariff Code: Not available in source data
GTIN/EAN: Not available in source data
