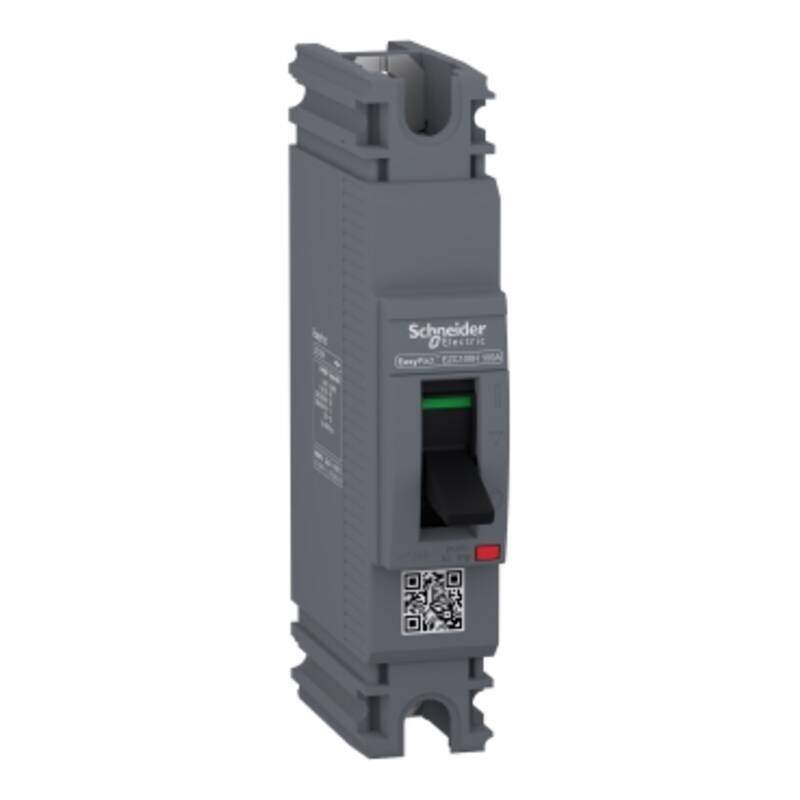

EasyPact EZC100H is a 1 pole fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price The breaking capacity (Icu) is 25kA rms at 240VAC 50/60Hz. The operational voltage is 415VAC 50/60Hz or 125VDC. The rating of the thermal-magnetic trip unit is 100A. The trip unit provides fixed overload and instantaneous protections. The dimensions for this 1 pole version are 25mm (W) x 130mm (H) x 60mm (D). Easypact EZC100H is compliant with international standards (IEC 60947, UL 508) and marine certifications.
Specifications
Range of product: EasyPact
Product or component type: Circuit breaker
Device short name: Easypact EZC100H
Circuit breaker name: Easypact EZC100H
Device application: Distribution
Poles description: 1P
Protected poles description: 1t
Network type: AC
DC
Network frequency: 50/60 Hz
[In] rated current: 100 A at 40 °C
[Ui] rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-2
[Ue] rated operational voltage: 125 V DC conforming to IEC 60947-2
415 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code: H
Breaking capacity: 10 kA Icu at 125 V DC 1P conforming to IEC 60947-2
25 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2
5 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
5 kA Icu at 400…415 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 110…130 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity: 5 kA at 125 V DC conforming to IEC 60947-2
12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
25 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2
2.5 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
2.5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Suitability for isolation: Yes conforming to IEC 60947-2
Utilisation category: Category A
Trip unit name: TM-D
Trip unit technology: Thermal-magnetic
Trip unit rating: 100 A at 50 °C
Protection type: Short-circuit protection
Overload protection
Pollution degree: 3 conforming to IEC 60664-1
3 conforming to IEC 947-1
Main
Control type: Toggle
Mounting mode: Fixed
Mounting support: Backplate
Upside connection: Front
Downside connection: Front
Mechanical durability: 13000 cycles
Connection pitch: 25 mm
Local signalling: Positive contact indication
Neutral protection setting: Without protection
Earth-leakage protection: Without
Height: 130 mm
Width: 25 mm
Depth: 60 mm
Complementary
Standards: GB/T 14048.2
EN/IEC 60947-2
EN/IEC 60947-1
JIS C8201-2-2
IP degree of protection: IP20 conforming to IEC 60529
IK degree of protection: IK07 conforming to IEC 62262
Ambient air temperature for operation: -25…70 °C
Ambient air temperature for storage: -35…85 °C
Packing Units
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.0 cm
Package 1 Width: 9.5 cm
Package 1 Length: 14.0 cm
Package 1 Weight: 355.0 g
Unit Type of Package 2: S02
Number of Units in Package 2: 32
Package 2 Height: 15.0 cm
Package 2 Width: 30.0 cm
Package 2 Length: 40.0 cm
Package 2 Weight: 11.468 kg
Unit Type of Package 3: P12
Number of Units in Package 3: 1024
Package 3 Height: 75 cm
Package 3 Width: 120 cm
Package 3 Length: 80 cm
Package 3 Weight: 379 kg
Contractual warranty
Warranty (in months): 18
