Description

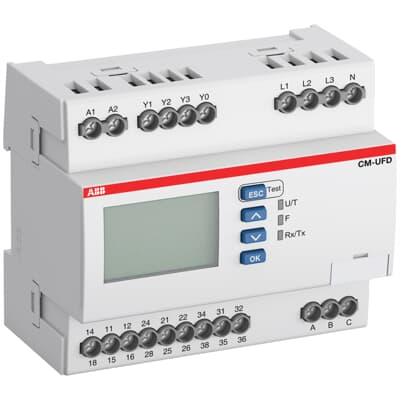

Product: CM-UFD.M33M
Manufacturer: ABB
The CM-UFD.M33M is a multi-functional grid feeding monitoring relay with Modbus RTU communication interface, which provides interface protection and is to be installed between a renewable energy system and the public grid. This innovative relay guarantees grid stability and seeks to prevent blackout. If the voltage or frequency magnitudes of the public grid are outside the permitted range, the device changes status and acts to disconnect the renewable energy system from the public grid by sending a signal to a decoupling unit (e.g. contactor, switch disconnector or circuit breaker). As soon as the grid is stable again, the system may automatically reconnect. The CM-UFD.M33M provides different monitoring functions including over-/undervoltage and over-/underfrequency as well as rate of change of frequency (RoCoF) and vector shift monitoring functions which detect a loss of mains event. This grid feed monitoring relay complies with G99 requirements and may be connected to the state-of-the-art cloud solution ABB Ability Energy and Asset Manager.
Catalog Description: CM-UFD.M33M Grid feeding monitoring relay 3c/o,L-L=0-550VAC,L-N=0-317VAC,ModbusRTU
Dimensions (cm): Width: 10.8 Height: 9.0 Depth: 6.7
Weight (kg): 0.312
Functions: Over- and undervoltage monitoring, Interrupted neutral monitoring, Over- and underfrequency monitoring, 10 minutes average value monitoring, Vector shift detection, ROCOF monitoring
Measuring Range: 0 to 550 V AC
Rated Control Supply Voltage (Us): 24 to 240 V AC/DC
Output: 3 C/O (SPDT) Contacts
Terminal Type: Screw Terminals
Rated Operational Currents: AC-12: 4 A at 230 V, AC-15: 3 A at 230 V, DC-12: 4 A at 24 V, DC-13: 2 A at 24 V
Minimum Switching Capacity: 24 V, 10 mA
Degree of Protection: Housing IP20, Terminals IP20
Pollution Degree: 3
Short-Circuit Protective Devices: Output Circuit NC and NO – F Type Fuses 10 A
Durability: Electrical AC-12 100000 cycles, Mechanical 30000000 cycles
Connecting Capacity: Flexible with Ferrule 1×0.25 to 4.0 mm², 2x 0.25 to 0.75 mm²; Flexible with Insulated Ferrule 1×0.25 to 4.0 mm², 2x 0.25 to 0.75 mm²; Flexible 1×0.2 to 4.0 mm²; Flexible 2×0.2 to 1.5 mm²; Rigid 1×0.2 to 6.0 mm²; Rigid 2×0.2 to 1.5 mm²
Tightening Torque: 0.5 to 0.6 N·m
Wire Stripping Length: 8 mm
Mounting Position: 1 to 6
Mounting on DIN Rail: TH35-7.5 and TH35-15 (35 x 7.5 mm and 35 x 15 mm Mounting Rail) acc. to IEC 60715
Standards: IEC/EN 63000, IEC/EN 60255-26, IEC/EN 60255-27, IEC/EN 61000-6-3, ENA EREC G98, ENA EREC G99, IEC/EN 60255-181
UL/CSA Maximum Operating Voltage: 300 V AC Output Circuit
Contact Rating UL/CSA: B300
Connecting Capacity UL/CSA: Flexible with Ferrule 1×24-12 AWG, 2×24-18 AWG; Flexible with Insulated Ferrule 1×24-12 AWG, 2x 24-18 AWG; Flexible 1×24-12 AWG, 2×24-16 AWG; Rigid 1×24-10 AWG, 2×24-16 AWG
Tightening Torque UL/CSA: 4.4 to 5.3 in·lbs
Pilot Duty UL/CSA: B300
Environmental Operating Temperature: -20 to +60 °C
Environmental Storage Temperature: -25 to +50 °C
RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Package Level 1 Dimensions (cm): Width: 12.1 Depth: 7.1 Height: 9.9
Package Level 1 Gross Weight (kg): 0.365
Customs Tariff Code: 85364900
