Description

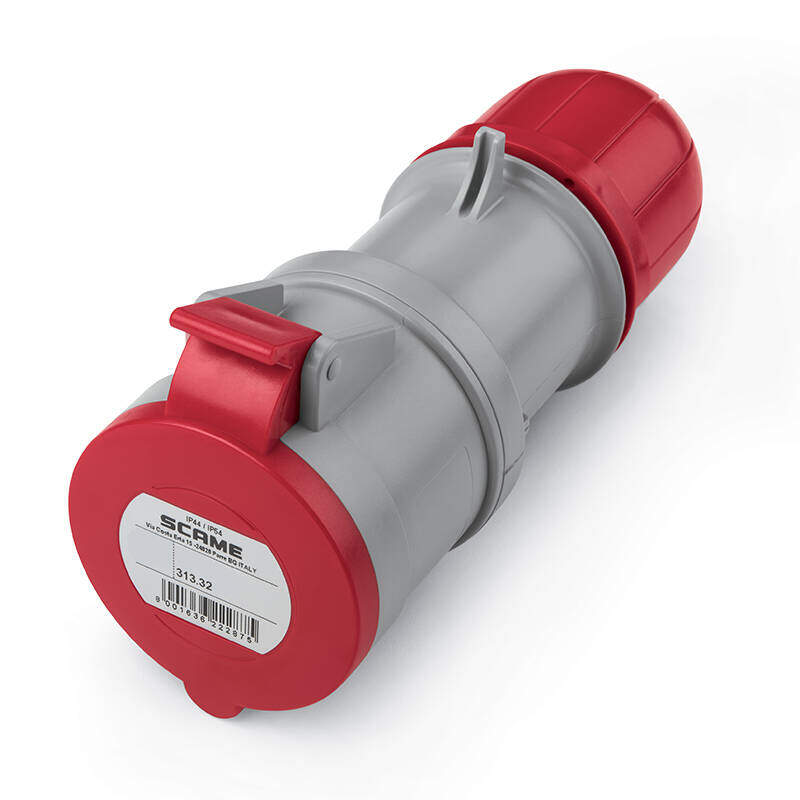

CONNECTOR 32A 3P+E 6h 380-415V 60Hz 50Hz Screw terminals
Product Code: 313.3246
The connector of the OPTIMA Series is engineered for a rated voltage of 380-415V and a rated current of 32A. Featuring a 3P+E configuration and a 6h hour position, it operates efficiently at both 50Hz and 60Hz frequencies. With an IP44/IP54 protection degree, it ensures robust performance in various environments. Equipped with screw terminals and straight type outlets, it offers reliable connectivity. For a different aesthetic, a version in black is available by appending “.K” to the catalogue number.
Tech Data
Commercial Series: OPTIMA Series
Synthetical description: CONNECTOR
Mounting version: PORTABLE
Rated current: 32A
Poles: 3P+E
Hour position: 6h
Rated voltage: 380-415V
Working frequency: 60Hz, 50Hz
Colour: RED
Material: THERMOPLASTIC
Protection degree: Splash proof
Protection degree IP: IP44/IP54
Protection degree IK: IK08
Types of available outlets: STRAIGHT
Terminals: Screw terminals
Contact material: CuZn (brass)
Cable entry: CABLE GLAND
Catalogue notes: Version also available in black; just add “.K” at the end of the catalogue number.
Product Details
EAN code: 8001636222868
INTRASTAT code: 8536699099
Net weight: 0.272 KG
Minimum Quantity: 10
Packaging
Packaging Box
Quantity: 10
EAN code: 8001636672441
Depth: 275.0 MM
Width: 220.0 MM
Height: 160.0 MM
Volume: 9680.0 CCM
Packaging Carton
Quantity: 40
EAN code: 8001636672458
Depth: 390.0 MM
Width: 390.0 MM
Height: 310.0 MM
Volume: 47151.0 CCM
