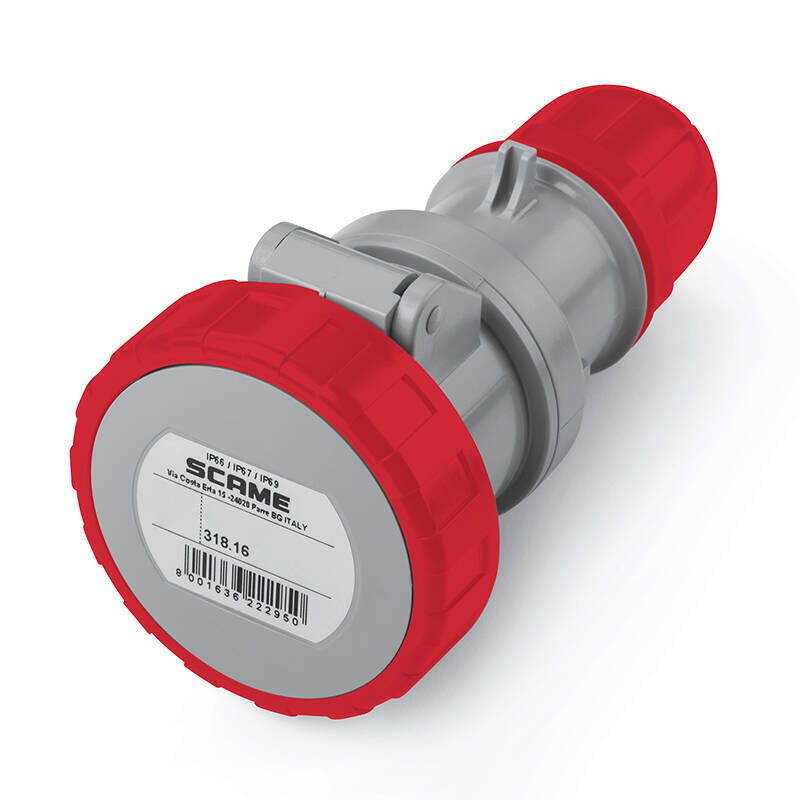

CONNECTOR 16A 3P+N+E 6h 346-415V 60Hz 50Hz Screw terminals
SKU: 318.1647
The OPTIMA Series connector is designed for demanding electrical industrial environments, featuring a 3P+N+E configuration and supporting a rated current of 16A. It operates efficiently at working frequencies of 50Hz and 60Hz, with a rated voltage range of 346-415V. The connector is engineered with a 6h hour position and offers superior protection with IP66/IP67/IP69 ratings, ensuring excellent resistance to dust and water ingress. Equipped with screw terminals, it facilitates secure and reliable connections. Available in a straight outlet type, the connector can also be ordered in black by appending “.K” to the catalogue number, providing versatility for various industrial applications.
Tech Data
Commercial Series: OPTIMA Series
Synthetical description: CONNECTOR
Mounting version: PORTABLE
Rated current: 16A
Poles: 3P+N+E
Hour position: 6h
Rated voltage: 346-415V
Working frequency: 60Hz, 50Hz
Colour: RED
Material: THERMOPLASTIC
Protection degree: Watertight
Protection degree IP: IP66/IP67/IP69
Protection degree IK: IK08
Types of available outlets: STRAIGHT
Terminals: Screw terminals
Contact material: CuZn (brass)
Cable entry: CABLE GLAND
Catalogue notes: Version also available in black; just add “.K” at the end of the catalogue number.
Product
EAN code: 8001636222998
INTRASTAT code: 8536699099
Net weight: 0.29 KG
Minimum Quantity: 10
