Description

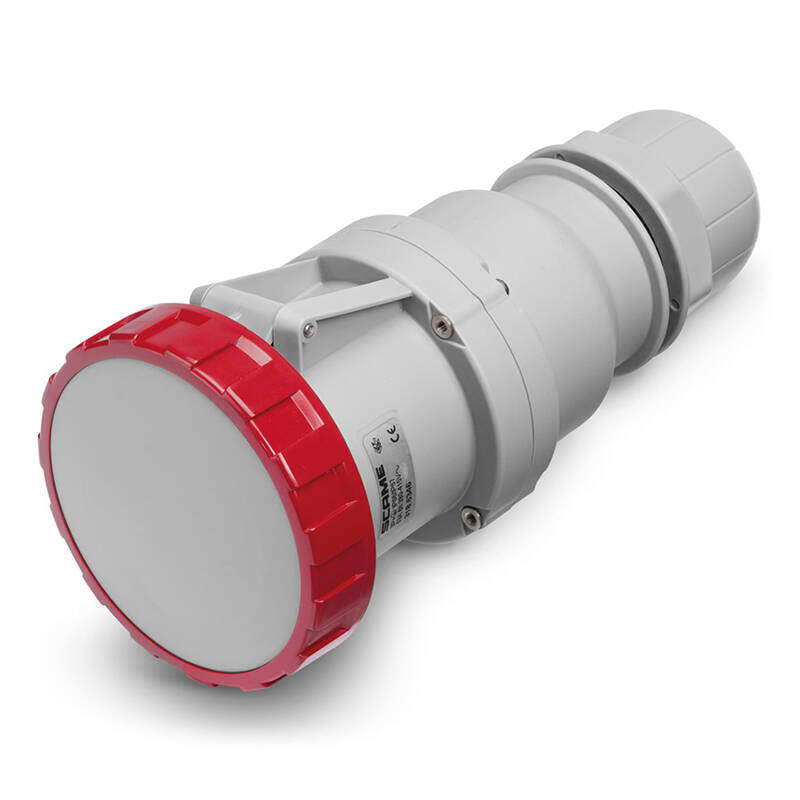

CONNECTOR 63A 3P+E 6h 380-415V 60Hz 50Hz Mantle terminals
SKU: 318.6346
The OPTIMA Series connector is designed for demanding electrical industrial applications, featuring a rated voltage of 380-415V and a rated current of 63A. It operates at a working frequency of 50Hz to 60Hz and includes a 3P+E configuration with a 6h hour position. The connector offers superior protection with IP66/IP67/IP69 ratings, ensuring excellent resistance to dust and water ingress. Equipped with mantle terminals, it facilitates secure connections. The connector is available in a straight outlet type and includes the EASY-PLUG feature for enhanced usability. A black version is also available by adding “.K” to the catalogue number.
Tech Data
Commercial Series: OPTIMA Series
Synthetical description: CONNECTOR
Mounting version: PORTABLE
Rated current: 63A
Poles: 3P+E
Hour position: 6h
Rated voltage: 380-415V
Working frequency: 50Hz, 60Hz
Colour: RED
Material: THERMOPLASTIC
Protection degree: Watertight
Protection degree IP: IP66/IP67/IP69
Protection degree IK: IK08
Types of available outlets: STRAIGHT
Terminals: Mantle terminals
Contact material: CuZn (brass)
Cable entry: CABLE GLAND
Notes: EASY-PLUG
Catalogue notes: Version also available in black; just add “.K” at the end of the catalogue number.
Product
EAN code: 8001636224701
INTRASTAT code: 8536699099
Net weight: 0.663 KG
Packaging
Packaging Box
EAN code: 8001636676012
Quantity: 6
Depth: 308.0 MM
Width: 268.0 MM
Height: 180.0 MM
Packaging Carton
EAN code: 8001636676029
Quantity: 24
Depth: 560.0 MM
Width: 375.0 MM
Height: 345.0 MM
