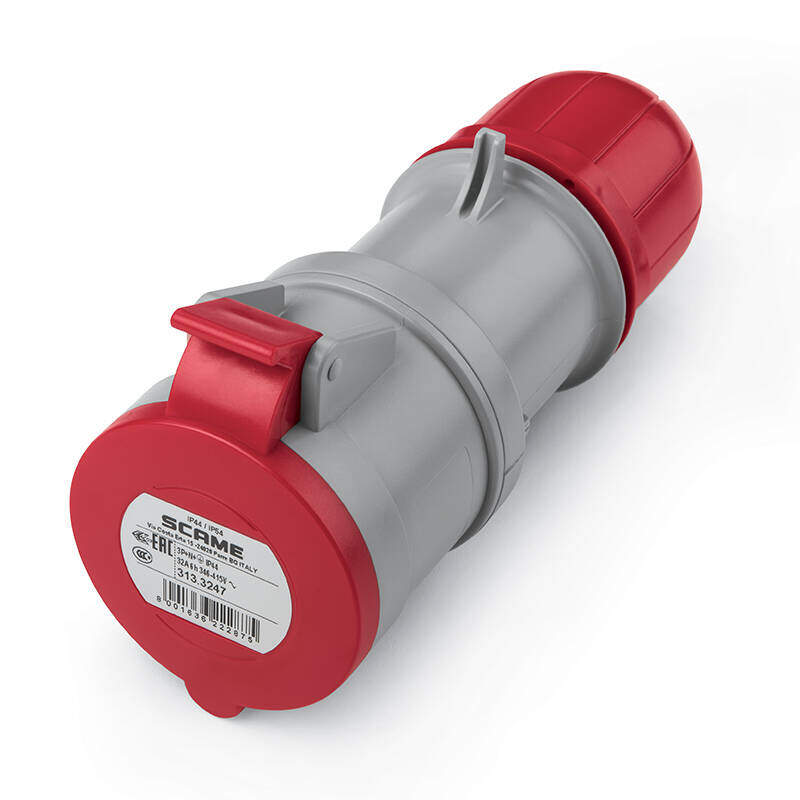

OPTIMA Series – CONNECTOR 313.3247
The connector of the OPTIMA Series is engineered for a rated voltage of 346-415V and a rated current of 32A. Featuring a 3P+N+E configuration and a 6h hour position, it operates efficiently at both 50Hz and 60Hz frequencies. With an IP44/IP54 protection degree, it ensures robust performance in various environments. Equipped with screw terminals and straight type outlets, it offers reliable connectivity.
Technical Specifications
Commercial Series: OPTIMA Series
Synthetical description: CONNECTOR
Mounting version: PORTABLE
Rated current: 32A
Poles: 3P+N+E
Hour position: 6h
Rated voltage: 346-415V
Working frequency: 50Hz / 60Hz
Colour: RED
Material: THERMOPLASTIC
Protection degree: Splash proof
IP Protection: IP44/IP54
IK Protection: IK08
Terminals: Screw terminals
Contact material: CuZn (brass)
Cable entry: CABLE GLAND
Packaging Details
Net Weight: 0.33 kg
Minimum Quantity: 10 pcs
