Description

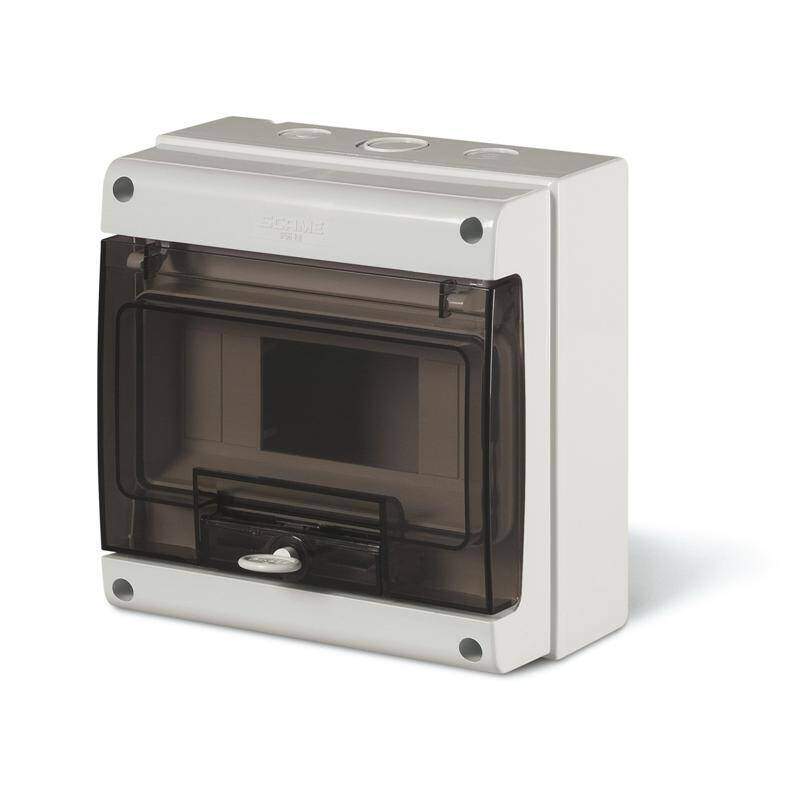

CONSUMER UNIT – IP66 SURFACE MOUNTING M190 8 MOD. 184x190x106mm GREY
Cod. 672.2008
The DOMINO IP66 Series enclosure is engineered for robust performance in demanding environments. Constructed from durable thermoplastic, it offers a protection degree of IP66 and IK07, ensuring resilience against dust, water, and mechanical impacts. Designed for surface mounting, this consumer unit accommodates 8 modules and features dimensions of 184x190x106mm. The enclosure is grey in color. Power dissipation is calculated in conformity with IEC EN 62208 and IEC EN 60670-24 standards, ensuring compliance with international safety and performance regulations.
Tech Data
Commercial Series: DOMINO IP66 Series [enclosure]
Synthetical description: CONSUMER UNIT
Colour: GREY
Material: THERMOPLASTIC
Mounting version: SURFACE MOUNTING
Protection degree IP: IP66
Protection degree IK: IK07
Modularity: M190
N.° modules: 8 MOD.
Dimensions: 184x190x106mm
Dissipable power: 14W
Catalogue notes: Power dissipation calculated in conformity with IEC EN 62208 and IEC EN 60670-24 standards
Product
EAN code: 8001636056364
INTRASTAT code: 8538100000
Net weight: 0.667 KG
Minimum Quantity: 1
