Description
General Information
Extended Product Type: CP1-30G-11
Product ID: 1SFA619100R3072
EAN: 7320500551370
Catalog Description: CP1-30G-11 Pushbutton

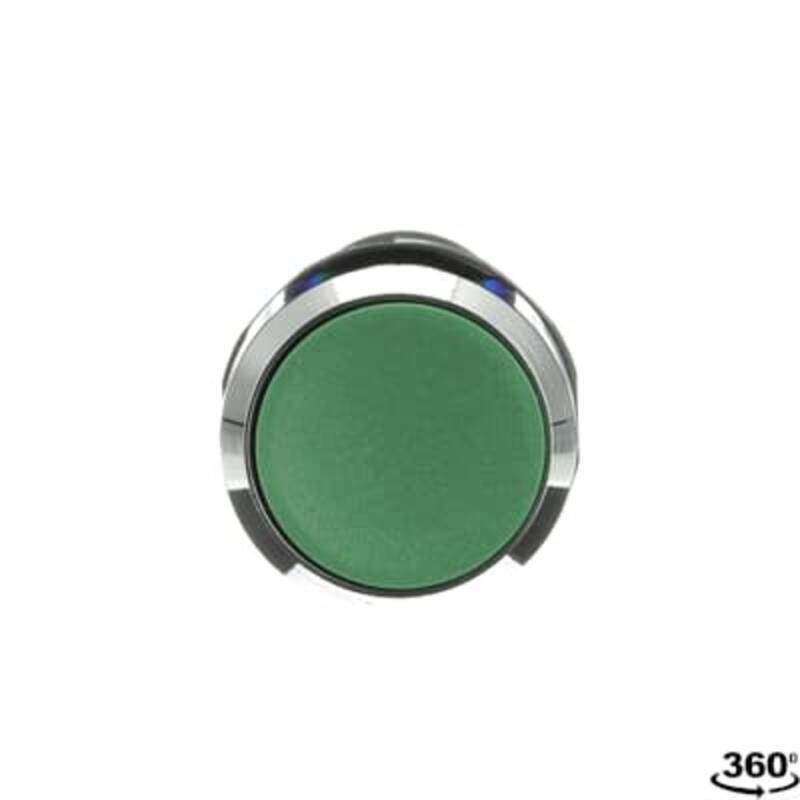

Long Description: The CP1-30G-11 Pushbutton is: Compact – Pushbutton – Momentary – Flush – Green – Non-illuminated – Chrome Metal – 1NO+1NC – 1 NO – 1 NC – 300 V
This Pushbutton is part of ABB’s compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Ordering
Minimum Order Quantity: 10 piece
Customs Tariff Number: 8536501999
Dimensions
Product Net Width: 30 mm
Product Net Height: 30 mm
Product Net Depth / Length: 55 mm
Product Net Weight: 0.036 kg
Technical
Ambient Air Temperature: Operation -25 … +70 °C
Storage -40 … +85 °C
Color: Green
Bezel Material: Metal
Illumination: Non-illuminated
Function: Momentary
Number of Auxiliary Contacts NC: 1
Number of Auxiliary Contacts NO: 1
Enclosure Type NEMA: Type1
Type12
Type13
Type3R
Type4
Type4X
Pollution Degree: 3
Rated Insulation Voltage (Ui): 300 V
Rated Impulse Withstand Voltage (Uimp): 6 kV
Rated Frequency (f): 50 / 60 Hz
Rated Operational Voltage: Maximum 300 V
Rated Operational Current DC-13 (Ie): (24 V) 0.3 A
(125 V) 0.2 A
Rated Operational Current AC-15 (Ie): (240 V) 2 A
(220 / 240 V) 2 A
Power Loss: Maximum 5 W
Mechanical Durability: 0.5 million
Connection Type: Screw Clamp
Terminal Type: Screw Terminals
Tightening Torque: 0.8 N·m
Wire Stripping Length: 6 mm
Environmental
Degree of Protection: Front IP66
Front IP67
Front IP69K
Terminals IP20
Container Information
Package Level 1 Units: bag 10 piece
Package Level 1 Width: 125 mm
Package Level 1 Depth / Length: 235 mm
Package Level 1 Height: 50 mm
Package Level 1 Gross Weight: 0.364 kg
Package Level 1 EAN: 7320500241707
External Classifications and Standards
Object Classification Code: S
ETIM 7: EC001028 – Push button, complete
UNSPSC: 39122216
