Description
General Information
Extended Product Type: CR-M4SS
Product ID: 1SVR405651R3000
EAN: 4013614528675

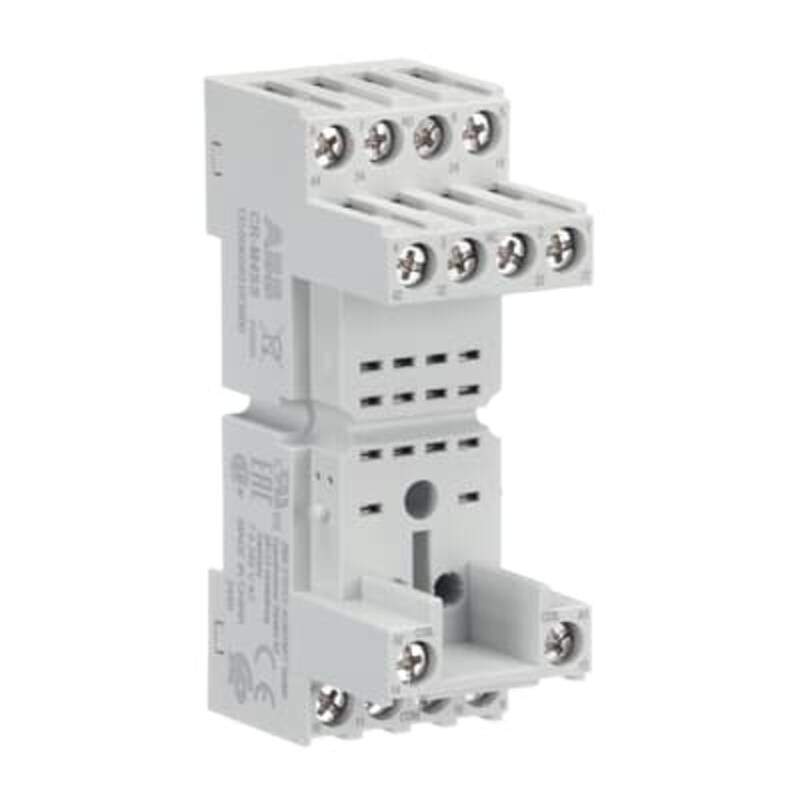

Catalog Description: CR-M4SS Standard socket for 2c/o or 4c/o CR-M relay
Long Description: The CR-M4SS socket is from the CR-M (miniature) relay range. The standard socket is suitable for CR-M relays with 2 and 4 c/o (SPDT) output contacts. The socket has screw connection terminals. Pluggable function modules, holder and marker are available as accessories.
Ordering
Minimum Order Quantity: 10 piece
Customs Tariff Number: 85366990
Package Level 1 EAN: 4013614373800
Dimensions
Product Net Width: 27 mm
Product Net Height: 42.5 mm
Product Net Depth / Length: 82 mm
Product Net Weight: 0.07 kg
Technical
Function: Accessory for interface relays CR-M
Sub-Function: Socket for miniature relays
Sub-Function 2: Standard socket for miniature relay 2 c/o or 4 c/o
Rated Operational Voltage: 250 V
Terminal Type: Screw Terminals
Rated Operational Current AC-12 (Ie): (230 V) 7 A
Rated Insulation Voltage (Ui): 3 V
Mounting Position: 1
Standards: CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61984, UL 508
Technical UL/CSA
Connecting Capacity Main Circuit UL/CSA: Flexible with Ferrule 2x 20-16 AWG
Rigid 2x 20-14 AWG
Stranded 2 x 20-14 AWG
Flammability According to UL94: V-0
Environmental
Ambient Air Temperature: Operation -40 … +70 °C
Storage -40 … +70 °C
Maximum Operating Altitude Permissible: 2000 m
Container Information
Package Level 1 Units: box 10 piece
Package Level 1 Width: 141 mm
Package Level 1 Depth / Length: 78 mm
Package Level 1 Height: 95 mm
Package Level 1 Gross Weight: 0.702 kg
External Classifications and Standards
Object Classification Code: K
ETIM 7: EC001456 – Relay socket
ETIM 8: EC001456 – Relay socket
ETIM 9: EC001456 – Relay socket
eClass: V11.0 : 27371603
UNSPSC: 39122335
E-Number (Finland): 2712717
E-Number (Norway): 4187433
E-Number (Sweden): 4005374
