Description
General Information
Extended Product Type: CR-PSS
Product ID: 1SVR405650R1000
EAN: 4013614528590

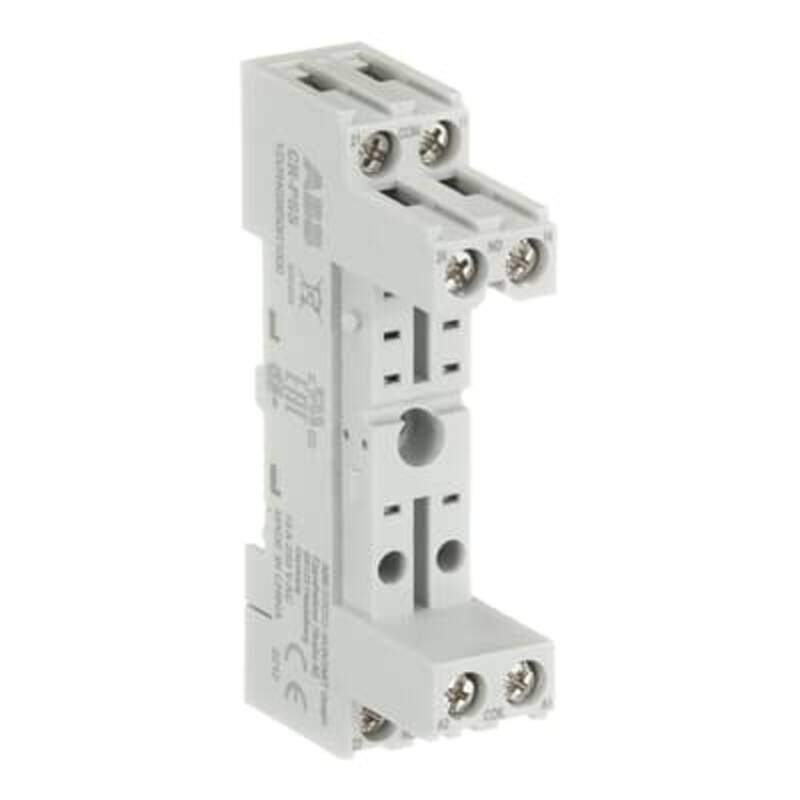

Catalog Description: CR-PSS Standard socket for 1c/o or 2c/o CR-P relays
Long Description: The CR-PSS socket is from the CR-P (pcb) relay range. The standard socket is suitable for CR-P relays with 1 or 2 c/o (SPDT) output contacts. The socket has screw connection terminals. Pluggable function modules, holder and marker are available as accessories.
Ordering
EAN: 4013614528590
Minimum Order Quantity: 10 piece
Customs Tariff Number: 85366990
Dimensions
Product Net Width: 15.5 mm
Product Net Height: 42.5 mm
Product Net Depth / Length: 75 mm
Product Net Weight: 0.038 kg
Technical
Function: Accessory for interface relays CR-P
Sub-Function: Socket for PCB relays
Sub-Function 2: Standard socket for pcb relay 1 c/o or 2 c/o
Rated Operational Voltage: 250 V
Terminal Type: Screw Terminals
Rated Operational Current AC-12 (Ie): (230 V) 2 A
Rated Insulation Voltage (Ui): 5 V
Mounting Position: 1
Standards: CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61984
UL 508
Technical UL/CSA
Connecting Capacity Main Circuit UL/CSA: Flexible with Ferrule 2x 20-16 AWG
Rigid 2x 20-14 AWG
Stranded 2 x 20-14 AWG
Flammability According to UL94: V-0
Environmental
Ambient Air Temperature: Operation -40 … +70 °C
Storage -40 … +70 °C
Maximum Operating Altitude Permissible: 2000 m
Container Information
Package Level 1 Units: box 10 piece
Package Level 1 Width: 81 mm
Package Level 1 Depth / Length: 88 mm
Package Level 1 Height: 74 mm
Package Level 1 Gross Weight: 0.382 kg
Package Level 1 EAN: 4013614373084
External Classifications and Standards
Object Classification Code: K
ETIM 7: EC001456 – Relay socket
ETIM 8: EC001456 – Relay socket
ETIM 9: EC001456 – Relay socket
eClass: V11.0 : 27371603
UNSPSC: 39122335
E-Number (Finland): 2712758
E-Number (Norway): 4187348
E-Number (Sweden): 4005317
