General Information
Extended Product Type: CT-EBD.12
Product ID: 1SVR500150R0000
EAN: 4013614350689
Catalog Description: CT-EBD.12 Time relay, flasher 1c/o, 24-240VAC 24-48VDC

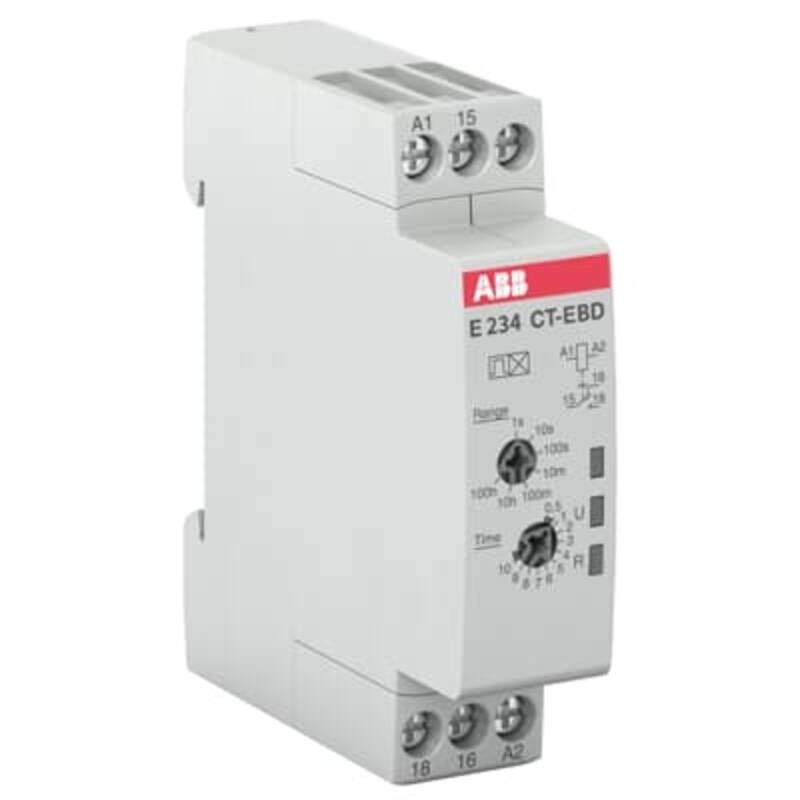

Long Description: The CT-EBD.12 is a single-function electronic time relay from the CT-D timer range. It provides a flasher (recycling equal times) function with 7 time ranges from 0.05 s to 100 h. This time relay operates with a rated control supply voltage of 24 – 48 V DC / 24 – 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 6 A.
Ordering
EAN: 4013614350689
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85364900
Dimensions
Product Net Width: 17.5 mm
Product Net Height: 70 mm
Product Net Depth / Length: 63 mm
Product Net Weight: 0.052 kg
Technical
Timer Relay Type: Flasher Starting with ON
Time Range: 0.05 s … 100 h
Rated Control Supply Voltage (Us): 24 … 240 V AC
24 … 48 V DC
Rated Operational Voltage: Auxiliary Circuit 250 V
Rated Frequency (f): 50 / 60 Hz
DC
Output: 1 C/O (SPDT) Contact
Terminal Type: Screw Terminals
Rated Operational Current AC-12 (Ie): (230 V) 6 A
Rated Operational Current AC-15 (Ie): (230 V) 3 A
Rated Operational Current DC-12 (Ie): (24 V) 6 A
Rated Operational Current DC-13 (Ie): (24 V) 2 A
Degree of Protection: Housing IP50
Terminals IP20
Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards: CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508
Technical UL/CSA
Maximum Operating Voltage UL/CSA: Output Circuit 300 V AC
Contact Rating UL/CSA: C300
Environmental
Ambient Air Temperature: Operation -20 … +60 °C
Storage -40 … +85 °C
Container Information
Package Level 1 Units: box 1 piece
Package Level 1 Width: 89 mm
Package Level 1 Depth / Length: 20 mm
Package Level 1 Height: 65 mm
Package Level 1 Gross Weight: 0.065 kg
Package Level 1 EAN: 4013614350689
External Classifications and Standards
Object Classification Code: K
ETIM 7: EC001439 – Timer relay
ETIM 8: EC001439 – Timer relay
ETIM 9: EC001439 – Timer relay
eClass: V11.0 : 27371605
UNSPSC: 39122329
