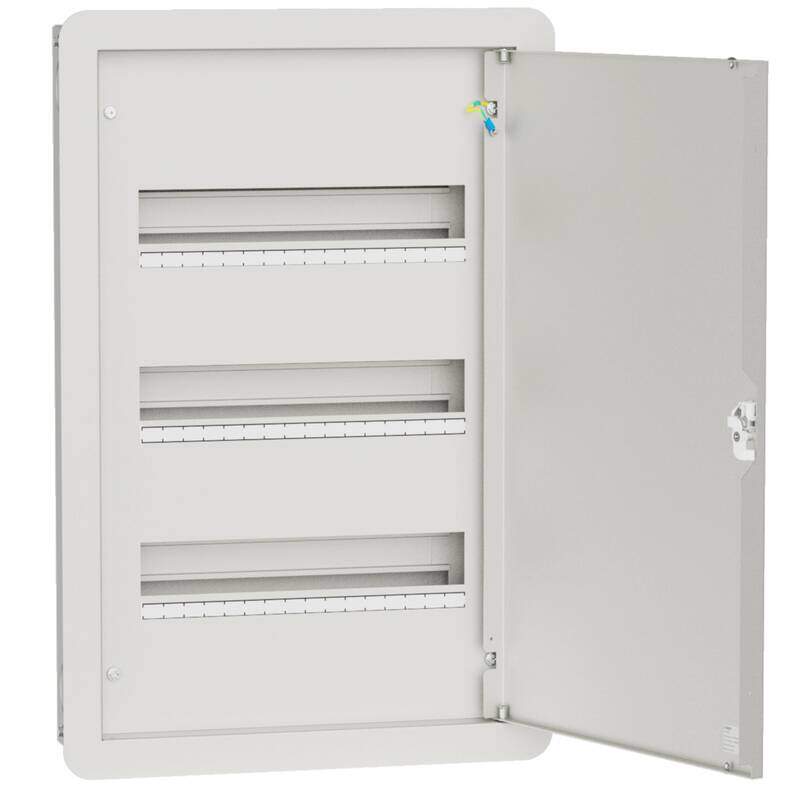

Hager DR48F Din Rail Board
The Hager DR48F is a high-quality, flush-mounted Din rail board designed for modern electrical installations. Featuring 3 rows with a total capacity of 48 modules, this board is ideal for residential and commercial distribution systems.
Constructed from robust steel and finished in grey white (RAL 9010), it offers an elegant yet durable enclosure solution. The non-transparent single door provides a clean aesthetic while maintaining an IP40 protection rating and IK05 impact resistance.
Technical Specifications
- Nominal Voltage: 415 V
- Mounting Type: Flush mounting, Screw mounting
- Number of Rows/Rails: 3
- Total Modules: 48
- Dimensions: Height: 64.9 cm, Width: 43 cm, Depth: 0.5 cm
- Built-in Dimensions: Height: 62 cm, Width: 40 cm, Depth: 11 cm
- Conduit Inlets: 17 inlets
- Maximum Power Loss: 24.53 W (at ΔT=20K)
- Safety & Standards: Isolation class I, Glow wire test 960 °C, RoHS conform, REACh-SVHC free
- Terminal Blocks: Includes neutral terminal block
