Description

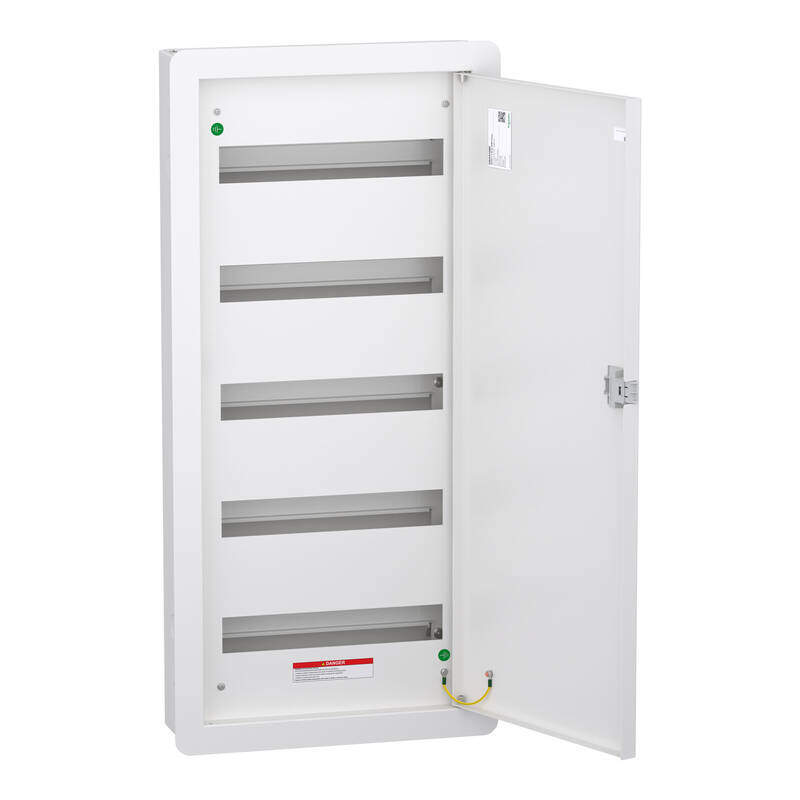

Experience streamlined power management with the DBSet 80 module, 5 row distribution board designed for flush mounting. The enclosure material is painted sheet steel thickness of 1.2mm. It comes with a plain door. Its current rating is 100A and insulation voltage is 500V. The color of the distribution board is white (RAL 9003). The degree of protection is IP41 and IK degree of protection is IK08. This distribution board is complies with 61439-1 and IEC 61439-3 standard.
Specifications
Range of the product: DBSeT
Product or component type: Distribution board
Device application: Low voltage electrical distribution
Number of horizontal rows: 5
Provided equipment: Enclosure
DIN rail
Identification label
Number of 18 mm modules per row: 80
[In] rated current: 100 A
Rated voltage: 240…415 V AC 50/60 Hz
[Ui] rated insulation voltage: 500 V AC
Protection device options: Isolator 100 A max as incomer
Miniature circuit breaker (MCB) 100 A max as incomer
RCCB 100 A max as incomer
Residual current circuit breaker with overcurrent protection (RCBO) 63 A max as outgoer
Miniature circuit breaker (MCB) 63 A max as outgoer
Enclosure mounting: Flush
Door type: Plain flat door
Type of rail: DIN
Cable entry: Removable gland plate at top and bottom of the enclosure
Enclosure material: painted sheet steel 1.2 mm thickness
Colour: White (RAL 9003)
Width: 425 mm
Height: 895 mm
Depth: 124.9 mm
IP degree of protection: IP41 conforming to IEC 60529
IK degree of protection: IK08 conforming to IEC 62262
Ambient air temperature for operation: 50 °C
Standards: IEC 61439-3
IEC 61439-1
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 13.6 cm
Package 1 Width: 44.5 cm
Package 1 Length: 91.5 cm
Package 1 Weight: 10 kg
Warranty (in months): 18
