Description
General Information

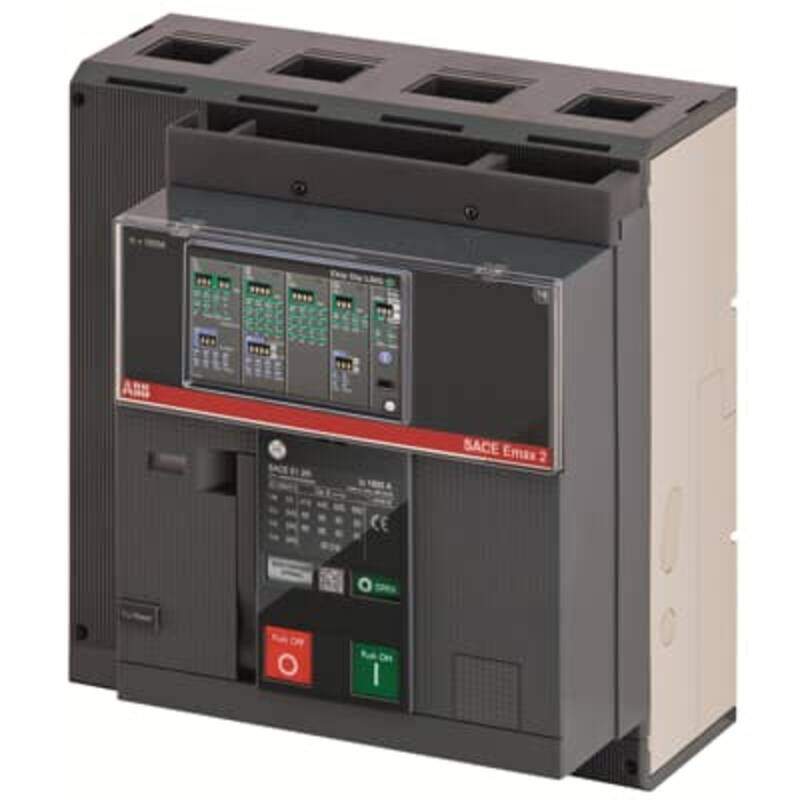

Extended Product Type: E1.2N 800 Ekip Dip LI 4p F F
Product ID: 1SDA071391R1
EAN: 8015644752415
Catalog Description: E1.2N 800 Ekip Dip LI 4p F F
Long Description: C.BREAKER SACE EMAX2 E1.2N 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP/DIP-LI R 800 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85362090
Dimensions
Product Net Width: 280 mm
Product Net Height: 296 mm
Product Net Depth / Length: 183 mm
Product Net Weight: 16 kg
Container Information
Package Level 1 Units: box 1 piece
Package Level 1 Width: 350 mm
Package Level 1 Height: 350 mm
Package Level 1 Depth / Length: 330 mm
Package Level 1 Gross Weight: 18 kg
Package Level 1 EAN: 8015644752415
Additional Information
Product Main Type: SACE Emax 2
Product Name: Air Circuit Breaker
Product Type: Air Circuit Breaker
Version: F
Technical
Current Type: AC
Number of Poles: 4P
Power Loss: 50 W
Rated Current (In): 800 A
Rated Insulation Voltage (Ui): AC 1000 V
Rated Operational Voltage: 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics): (220 V AC) 50 kA
(230 V AC) 50 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(660 V AC) 50 kA
(690 V AC) 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu): 800 A
Release: Ekip Dip LI
Release Type: EL
Short-Circuit Performance Level: N
Standards: IEC
Sub-type: E1.2
Terminal Connection Type: Front
