Description
General Information

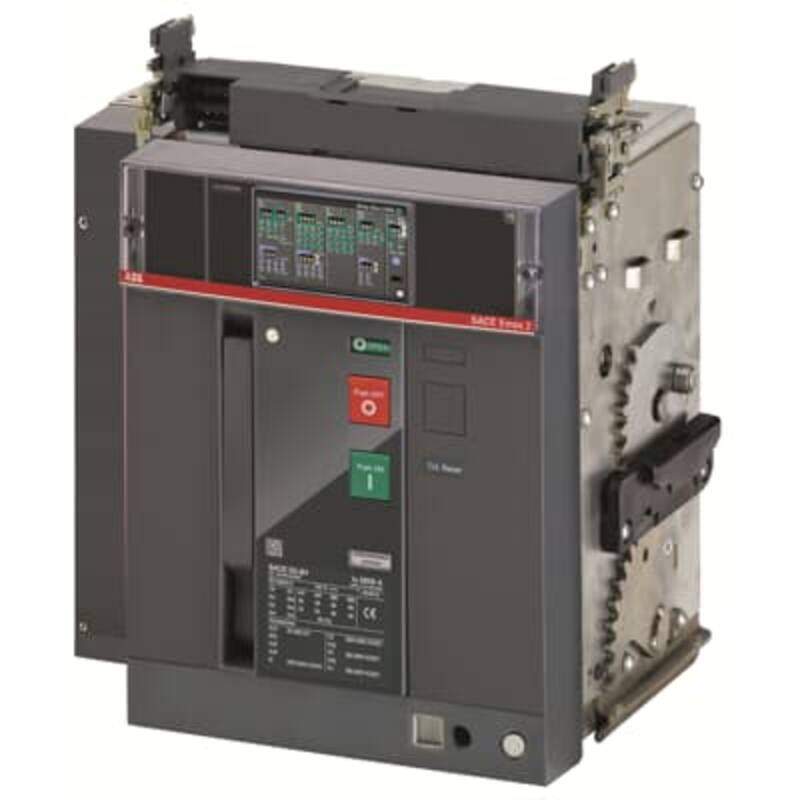

Extended Product Type: E2.2N 2000 Ekip Dip LSIG 4p WMP
Product ID: 1SDA073013R1
EAN: 8015644768638
Catalog Description: E2.2N 2000 Ekip Dip LSIG 4p WMP
Long Description: MOVING PART FOR C.BREAKER SACE EMAX2 E2.2N 2000 FOUR-POLE WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LSIG R 2000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85362090
Dimensions
Product Net Width: 407 mm
Product Net Height: 425 mm
Product Net Depth / Length: 383 mm
Product Net Weight: 55 kg
Container Information
Package Level 1 Gross Weight: 60 kg
Additional Information
Product Main Type: SACE Emax 2
Product Name: Air Circuit Breaker
Product Type: Air Circuit Breaker
Version: W
Technical
Current Type: AC
Number of Poles: 4P
Power Loss: 450 W
Rated Current (In): 2000 A
Rated Impulse Withstand Voltage (Uimp): acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui): AC 1000 V
Rated Operational Voltage: 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics): (220 V AC) 66 kA
(230 V AC) 66 kA
(380 V AC) 66 kA
(400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 66 kA
(660 V AC) 66 kA
(690 V AC) 66 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (400 V AC) 66 kA
(415 V AC) 66 kA
(440 V AC) 66 kA
(500 V AC) 66 kA
(525 V AC) 66 kA
(690 V AC) 66 kA
Rated Uninterrupted Current (Iu): 2000 A
Release: Ekip Dip LSIG
Release Type: EL
Short-Circuit Performance Level: N
Standards: IEC
Sub-type: E2.2
