General Information

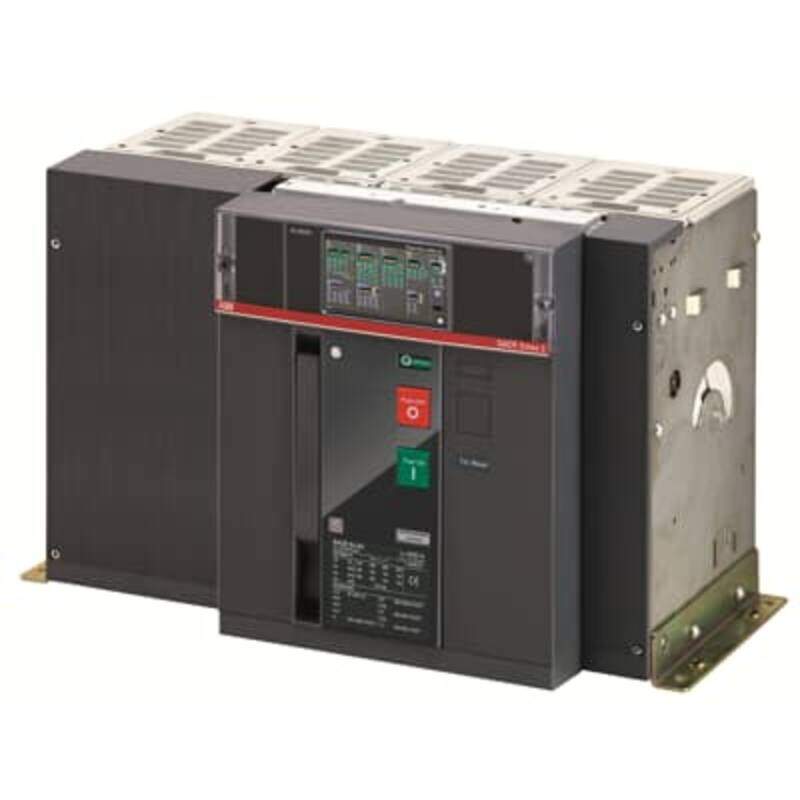

Extended Product Type: E4.2H 3200 Ekip Dip LI 4p F HR
Product ID: 1SDA071791R1
EAN: 8015644756413
Catalog Description: E4.2H 3200 Ekip Dip LI 4p F HR
Long Description: C.BREAKER SACE EMAX2 E4.2H 3200 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/DIP-LI R 3200 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85362090
Dimensions
Product Net Width: 510 mm
Product Net Height: 371 mm
Product Net Depth / Length: 270 mm
Product Net Weight: 70 kg
Container Information
Package Level 1 Units: box 1 piece
Package Level 1 Gross Weight: 77 kg
Package Level 1 EAN: 8015644756413
Additional Information
Product Main Type: SACE Emax 2
Product Name: Air Circuit Breaker
Product Type: Air Circuit Breaker
Version: F
Technical
Current Type: AC
Number of Poles: 4P
Power Loss: 425 W
Rated Current (In): 3200 A
Rated Operational Voltage: 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics): (220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(660 V AC) 85 kA
(690 V AC) 85 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(525 V AC) 85 kA
(690 V AC) 85 kA
Rated Uninterrupted Current (Iu): 3200 A
Release: Ekip Dip LI
Release Type: EL
Short-Circuit Performance Level: H
Standards: IEC
Sub-type: E4.2
Terminal Connection Type: Rear flat Horizontal
External Classifications and Standards
ETIM 9: EC000228 – Power circuit-breaker for trafo/generator/installation protection
Object Classification Code: Q
UNSPSC: 39121615
WEEE Category: 4. Large Equipment (Any External Dimension More Than 50 cm)
