Description
General Information

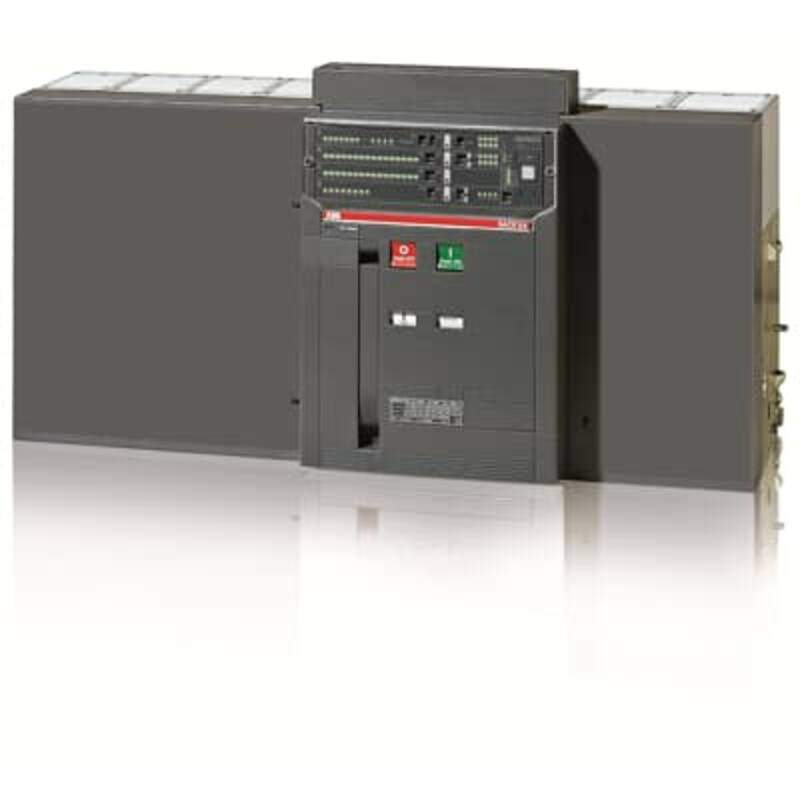

Extended Product Type: E4H4000PR121/P-LIIn=4000A4pFHR
Product ID: 1SDA056856R1
EAN: 8015644581961
Catalog Description: E4H 4000 PR121/P-LI In=4000A 4p F HR
Long Description: SACE EMAX CIRCUIT-BREAKER E4H 4000A FOUR-POLE FIXED WITH TERMINALS REAR HORIZONTAL OVERCURRENT RELEASE PR121/P-LI R4000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Ordering
EAN: 8015644581961
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85362090
Dimensions
Product Net Width: 656 mm
Product Net Height: 418 mm
Product Net Depth / Length: 302 mm
Product Net Weight: 92 kg
Container Information
Package Level 1 Units: 1 piece
Package Level 1 Width: 515 mm
Package Level 1 Height: 600 mm
Package Level 1 Depth / Length: 920 mm
Package Level 1 Gross Weight: 111 kg
Package Level 1 EAN: 8015644581961
Additional Information
Product Main Type: SACE Emax
Product Name: Air Circuit Breaker
Product Type: Air Circuit Breaker
Version: F
Technical
Current Type: AC
Electrical Durability: Ue =< 440 V 5000 cycle
Ue = 500 … 690 V 4000 cycle
10 cycles per hour
Mechanical Durability: 15000 cycle
60 cycles per hour
Number of Poles: 4P
Power Loss: 360 W
Rated Current (In): 4000 A
Rated Impulse Withstand Voltage (Uimp): 12 kV
Rated Insulation Voltage (Ui): 1000 V
Rated Operational Current (Ie): 4000 A
Rated Operational Voltage: 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics): (220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(660 V AC) 85 kA
(690 V AC) 85 kA
Rated Short-time Withstand Current Low Voltage (Icw): for 1 s 100 kA
for 3 s 75 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(660 V AC) 85 kA
(690 V AC) 85 kA
Rated Uninterrupted Current (Iu): 4000 A
Rated Voltage (Ur): 690 V
Release: PR121/P-LI
Release Type: EL
Short-Circuit Performance Level: H
Standards: IEC
Sub-type: E4
Terminal Connection Type: Fixed Circuit-Breakers
Rear flat Horizontal
External Classifications and Standards
Object Classification Code: Q
WEEE Category: 4. Large Equipment (Any External Dimension More Than 50 cm)
