Description
General Information
Extended Product Type: ZKS21G
Product ID: 2CPX063175R9999
EAN: 4011617631750

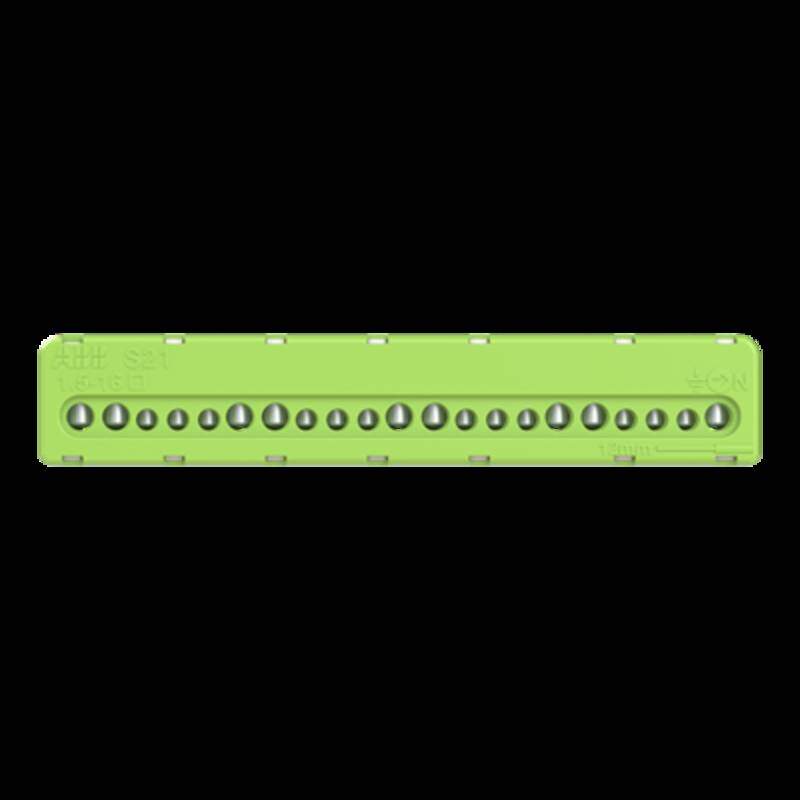

Catalog Description: Enclosure accessories Screw terminals, Direct mounting, Dimensions: 27 mm x 15 mm x 21 mm
Long Description: PE screw type terminal for plug-in carrier, assembly without tools using simple plug-in and latching equipment, clear color-coding: PE = green, flexible terminal system , number of terminals: 9 x 16 mm² + 12 x 6 mm² (screw connection technology)
Technical
Number of Poles: 1P
Number of Clamp Positions: 2121
Number of Line Terminals: 21
Accessory Type: terminals
Enclosure Type: Enclosure accessories
Terminal Connection Type: Side
Insulation Material: Thermoplastic
Accessories Available: No
Accessory Group: Additional terminals
Rated Cross-Section: 1 – Solid-Core 1,5…16 mm²n2 – Fine-Strand with Cable End Sleeve 1.5…16 mm²n2 – Fine-Strand with Cable End Sleeve 1,5…16 mm²n3 – Fine-Strand without Cable End Sleeve 0 mm²n4 – Multi-Wired 16 mm²
Terminal Type: Screw Terminals
Cross-Section (Across): Conductor Flexible with Cable End Sleeve 1.5…16 mm²nNominal 1.5…16 mm²
Electrical
Rated Operational Voltage: Maximum 230 V
Operational Voltage: 230 V
Rated Insulation Voltage (Ui): 400 V
Rated Current (In): 100 A
Design
Color: green
Material Compliance
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
Product Net Width: 15 mm
Product Net Height: 27 mm
Product Net Depth / Length: 21 mm
Product Net Weight: 0.091 kg
Ordering
Package Level 1 Units: pack 1 piece
Package Level 1 Gross Weight: 0.095 kg
E-Number (Sweden): 2201296
Installation
Mounting Type: Direct mounting
Mounting Height: Height at Lowest Possible 27 mm
External Classifications and Standards
ETIM 9: EC001284 – Single- and multi-pole terminal strip
ETIM 10: EC001284 – Single- and multi-pole terminal strip
eClass: V11.0 : 27141106
Object Classification Code: U
