Description

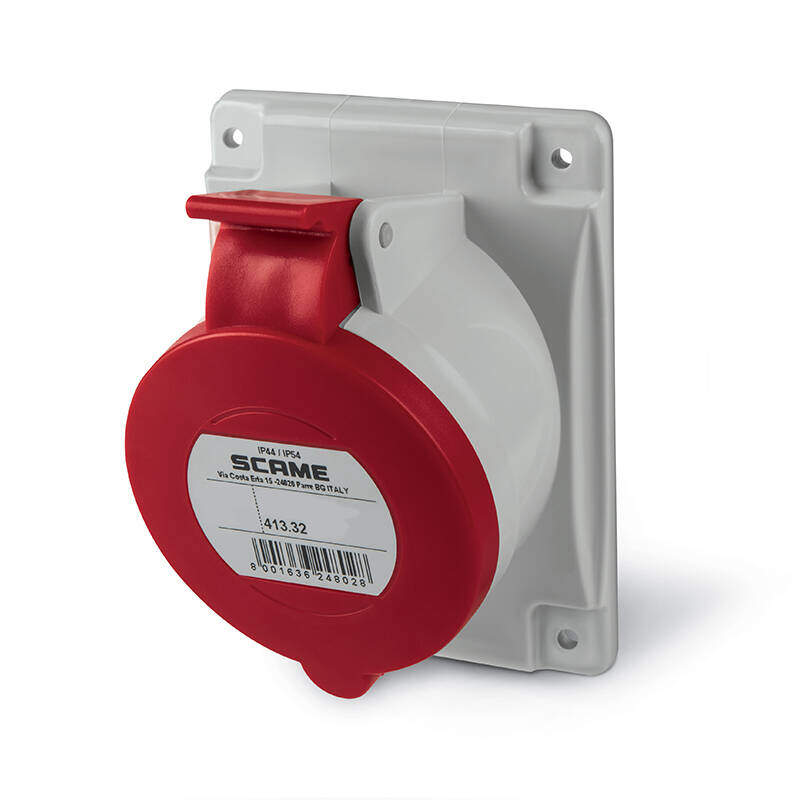

OPTIMA Series Flush-Mounting Socket – 413.3266
The 413.3266 is a high-quality flush-mounting socket from the OPTIMA Series. It is designed for industrial applications requiring robust and reliable power connections.
Technical Specifications
- Rated Current: 32A
- Poles: 3P+E
- Hour Position: 6h
- Rated Voltage: 380-415V
- Working Frequency: 50Hz / 60Hz
- Colour: Red
- Material: Thermoplastic
- Protection Degree: Splash proof (IP44/IP54)
- Impact Protection: IK08
- Terminals: Screw terminals
- Contact Material: CuZn (brass)
- Flange Size: 84×106 mm
Packaging Details
Box Packaging: Contains 10 units. Dimensions: 313.0 mm x 223.0 mm x 145.0 mm. Net weight per unit is 0.197 kg.
Carton Packaging: Contains 50 units. Dimensions: 550.0 mm x 355.0 mm x 395.0 mm.
