Description

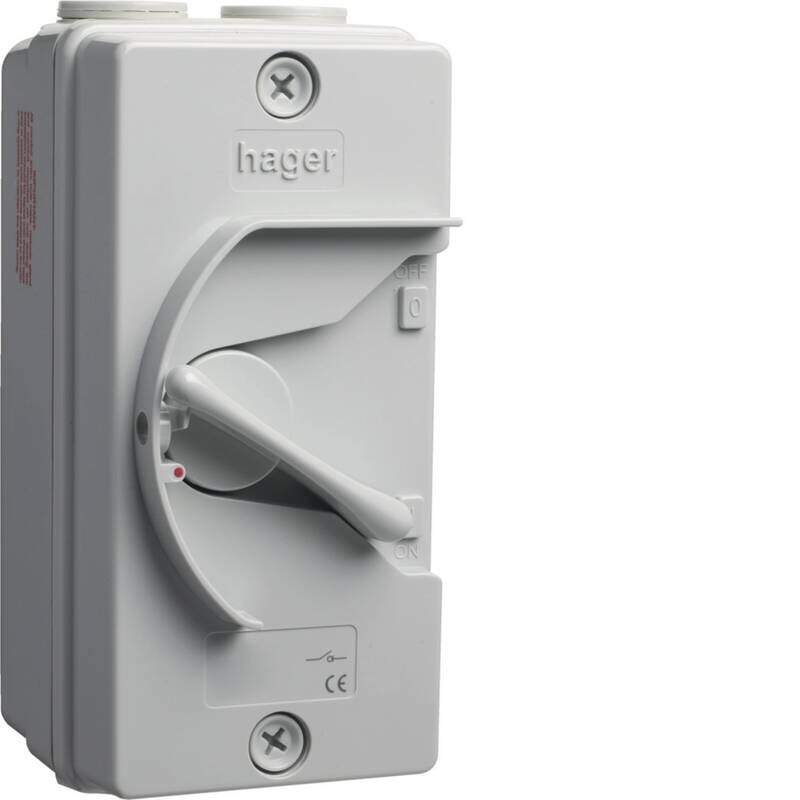

Hager Isolator Switch 1P+N 20A IP66 250V AC JG220IN
The Hager IP66 20A 2P 1P+N isolator provides safe manual disconnection of single-phase loads up to 20A. Its IP66 enclosure ensures reliable outdoor use in harsh conditions. Rated Ue 250 V, Ui 440 V, 50/60 Hz, with AC21/AC22/AC23 at 20 A and Icw/Icm 0.24 kA. Ideal for HVAC units, pumps, and machinery. Robust and compact, it accepts 2.5-4 mm² conductors and operates from -5 to 40°C. Designed for reliable installation in residential and commercial switchboards, suitable for DIN rail mounting.
Technical Characteristics
Number of poles: 2
Type of pole: 1P+N
Rated current: 20 A
Rated operational voltage: 250 V
Rated insulation voltage: 440 V
Rated short-time withstand current Icw: 0.24 kA
Rated short-circuit making capacity Icm: 0.24 kA
Tightening torque: 2 Nm
Dimensions: 170 mm (Height) x 84 mm (Width) x 87 mm (Depth)
IP Rating: IP66
Operating temperature: -5 to 40 °C
Rigid conductor cross-section: 2.5 – 4 mm²
Frequency: 50 – 60 Hz
