Description

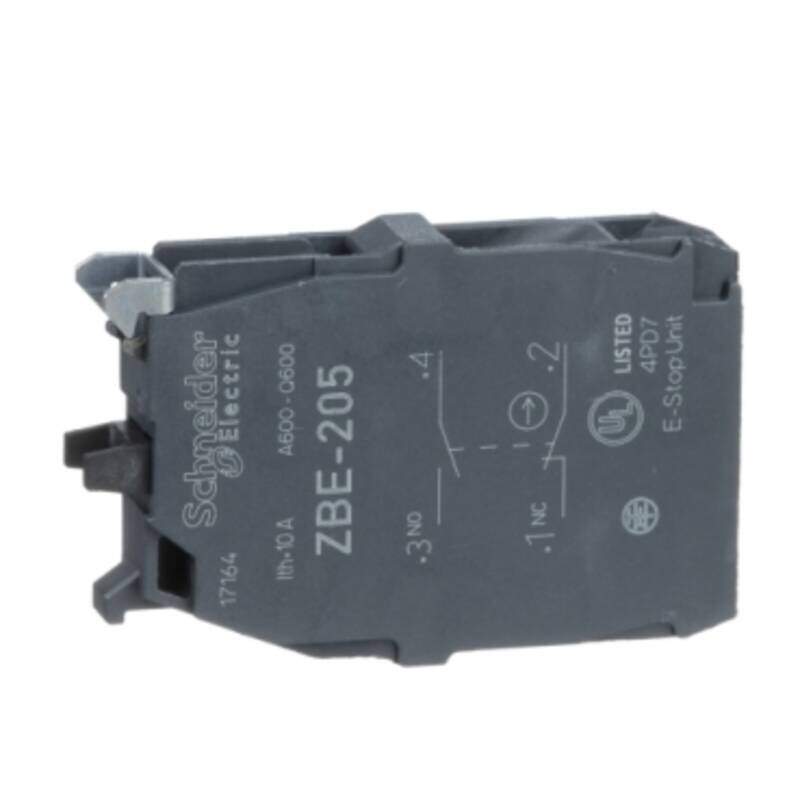

Harmony, 22mm Push Button, add on contact block, 1 NO and 1 NC, screw clamp terminal
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Specifications
Range of Product: Harmony XB4
Harmony XB5
Product or Component Type: Contact block
Device short name: ZBE
Sale per indivisible quantity: 5
IP degree of protection: IP20 IEC 60529
Contact operation: Slow-break
Contact block type: Double
Contacts usage: Standard contacts
Connections – terminals: Screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Main
Net Weight: 0.04 lb(US) (0.02 kg)
Contacts type and composition: 1 NO + 1 NC
Positive opening: With IEC 60947-5-1 appendix K
Operating travel: 0.06 in (1.5 mm) NC changing electrical state)
0.1 in (2.6 mm) NO changing electrical state)
0.2 in (4.3 mm) total travel)
Operating force: 4.6 N NC + NO changing electrical state
Mechanical durability: 10000000 cycles
Tightening torque: 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head: Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm
Contacts material: Silver alloy (Ag/Ni)
Short-circuit protection: 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A IEC 60947-5-1
[Ui] rated insulation voltage: 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-1
[Ie] rated operational current: 3 A 240 V, AC-15, A600 IEC 60947-5-1
6 A 120 V, AC-15, A600 IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability: 1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Mounting of block: Front mounting
Electrical composition code: C2 3)
C4 2)
C6 2)
C8 1)
C10 2)
C13 3)
M2 2)
M4 2)
M8 2)
Device presentation: Basic element
Complementary
Protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
Standards: IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-5-1
IEC 60947-5-4
IEC 60947-1
UL 508
JIS C8201-1
Product Certifications: DNV
CSA
LROS (Lloyds register of shipping)
BV
GOST
UL
CCC
Vibration resistance: 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Environment
Category: US10CS222469
Discount Schedule: 0CS2
GTIN: 3389110119251
Returnability: Yes
Country of origin: FR
Ordering and shipping details
Unit Type of Package 1: PCE
Nbr. of units in pkg.: 1
Package 1 Height: 1.7 in (4.4 cm)
Package 1 Width: 2.1 in (5.4 cm)
Package 1 Length: 2.2 in (5.7 cm)
Package weight(Lbs): 0.6 oz (17 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 5
Package 2 Height: 2.2 in (5.7 cm)
Package 2 Width: 1.7 in (4.4 cm)
Package 2 Length: 2.1 in (5.4 cm)
Package 2 Weight: 3.2 oz (92 g)
Unit Type of Package 3: S02
Number of Units in Package 3: 400
Package 3 Height: 5.9 in (15 cm)
Package 3 Width: 11.8 in (30 cm)
Package 3 Length: 15.7 in (40 cm)
Package 3 Weight: 17.002 lb(US) (7.712 kg)
Packing Units
Warranty (in months): 18
