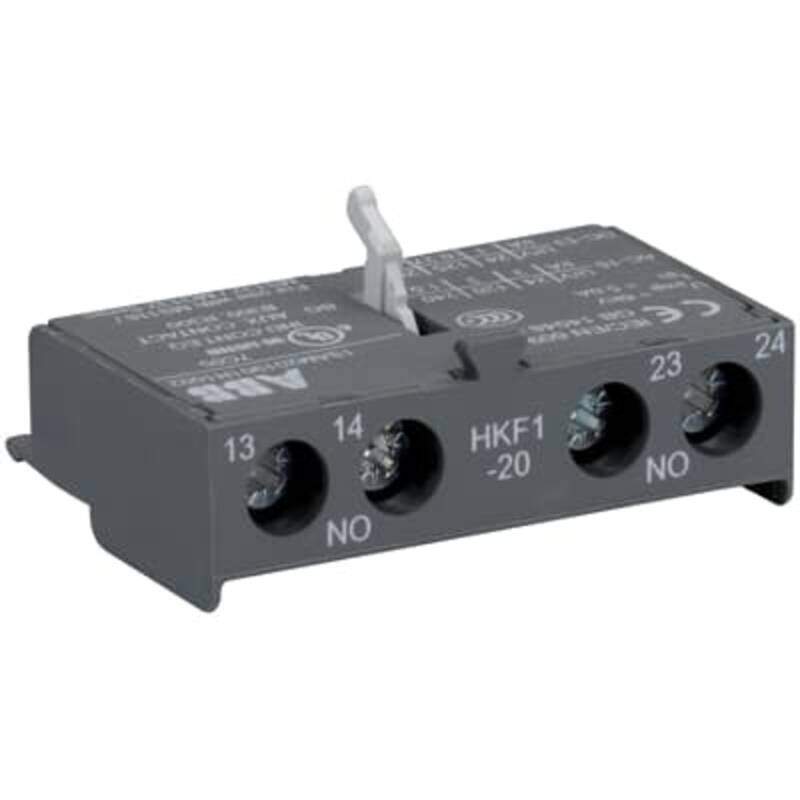

Extended Product Type: HKF1-20
Product ID: 1SAM201901R1002
EAN: 4013614480614
Catalog Description: HKF1-20 Aux.-contact 2NO, front mounting
Long Description: Auxiliary contacts HKF1 with screw terminals change position with the main contacts of the manual motor starter. They are mounted on the front side of manual motor starters MS116, MS132 or MS165. Auxiliary contacts HKF1 are available as normally open or normally closed contacts.
Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85365080
Dimensions
Product Net Width: 45 mm
Product Net Height: 12.5 mm
Product Net Depth / Length: 26.5 mm
Product Net Weight: 0.015 kg
Technical
Rated Operational Voltage: 250 V
Rated Frequency (f): Auxiliary Circuit DC
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Rated Impulse Withstand Voltage (Uimp): Auxiliary Circuit 6 kV
Rated Insulation Voltage (Ui): 250 V
Number of Auxiliary Contacts NC: 0
Number of Auxiliary Contacts NO: 2
Degree of Protection: IP20
Electrical Durability: 100000 cycle
Mechanical Durability: Nr. Operations 100000 cycle
Terminal Type: Screw Terminals
Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1/2x 0.75 … 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 … 1.5 mm²
Flexible 1/2x 0.75 … 1.5 mm²
Rigid 1/2x 1.0 … 2.5 mm²
Tightening Torque: Auxiliary Circuit 0.8 … 1.2 N·m
Wire Stripping Length: Auxiliary Circuit 8 mm
Recommended Screw Driver: M3
Pozidriv 2
Mounting Position: 1 … 6
Technical UL/CSA
Maximum Operating Voltage UL/CSA: Main Circuit 250 V AC
Connecting Capacity Auxiliary Circuit UL/CSA: Flexible 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Tightening Torque UL/CSA: Auxiliary Circuit 7 in·lb
Contact Rating UL/CSA: B300
R300
Environmental
Ambient Air Temperature: Operation -25 … +60 °C
Storage -50 … +80 °C
Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 25g
Resistance to Vibrations: 5g 3 … 150 Hz
Container Information
Package Level 1 Units: box 10 piece
Package Level 1 Width: 148 mm
Package Level 1 Depth / Length: 36 mm
Package Level 1 Height: 50 mm
Package Level 1 Gross Weight: 0.195 kg
Package Level 1 EAN: 4013614481420
External Classifications and Standards
Object Classification Code: Q
ETIM 9: EC000041 – Auxiliary contact block
ETIM 10: EC000041 – Auxiliary contact block
eClass: V11.0 : 27371302
UNSPSC: 39121522
IDEA Granular Category Code (IGCC): 4743 >> Auxiliary contact block
E-Number (Finland): 3705898
E-Number (Norway): 4364493
